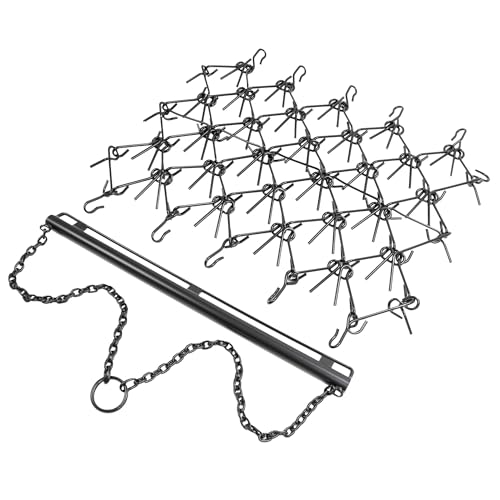

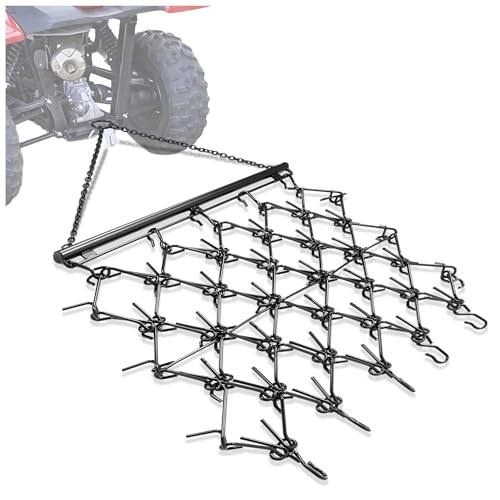

This Kuafu chain drag harrow is a steel-framed, powder-coated drag implement with 60 tines, a flip-and-reposition design for aggressive or smooth operation, and a folding frame for compact storage. It connects to any 2-inch trailer ball and is compatible with ATVs, UTVs, and lawn tractors requiring at least 4 HP to pull. No mounting accessories or printed instructions are included in the package.
Specifications
-

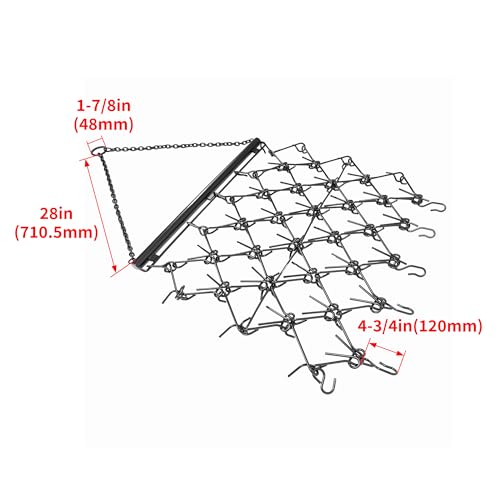

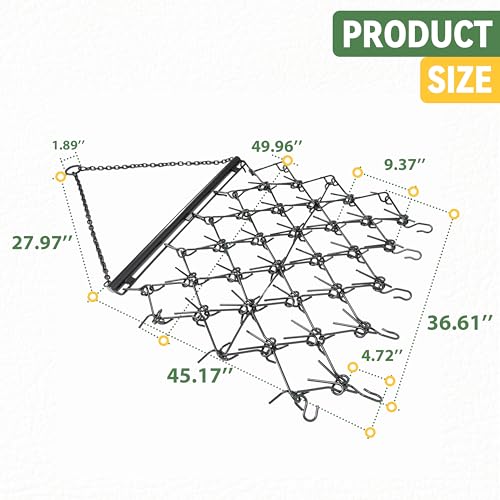

Working Size: 45 1/8"L x 44 3/8"W
-
Tine Count: 60 total
-
Tine Dimensions: 3/8" thick, 4" long
-

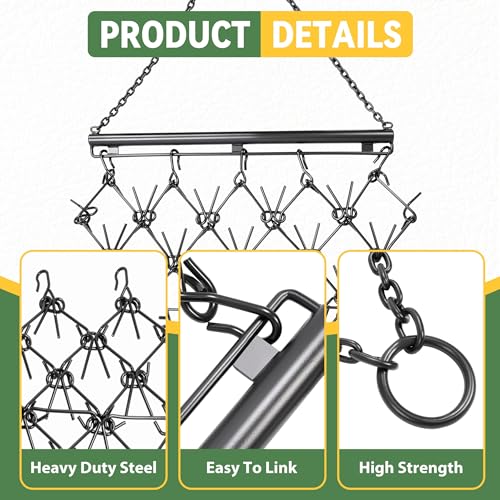

Frame Material: Steel with powder-coated finish
-
Hitch Compatibility: 2-inch trailer ball, universal fit
-
Minimum Pull Requirement: 4 HP
-

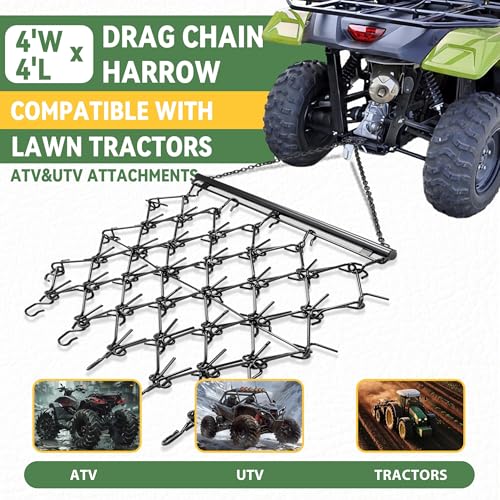

Compatible Vehicles: ATVs, UTVs, lawn tractors, trailers
-

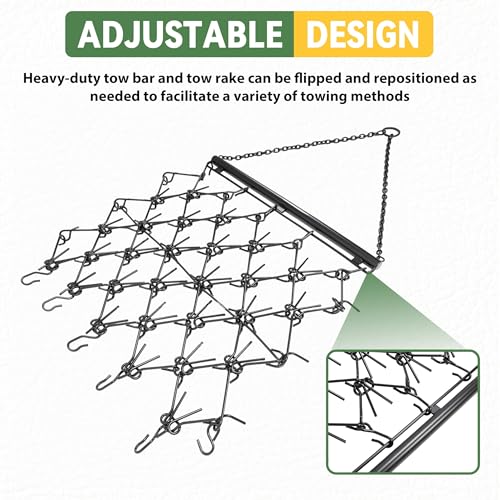

Orientation: Flippable for aggressive or smooth setting
-
Storage: Folding design
-

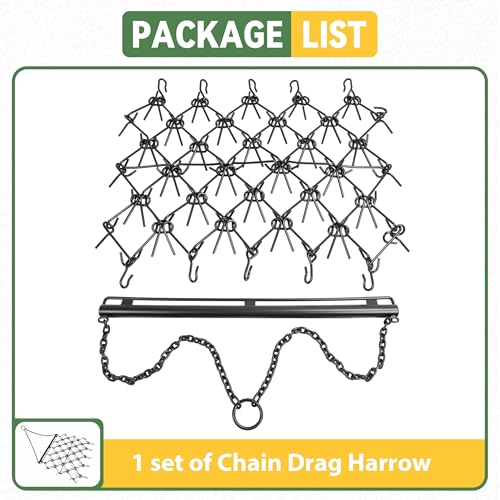

Included: Harrow unit and hook attachment only, no mounting accessories or instructions

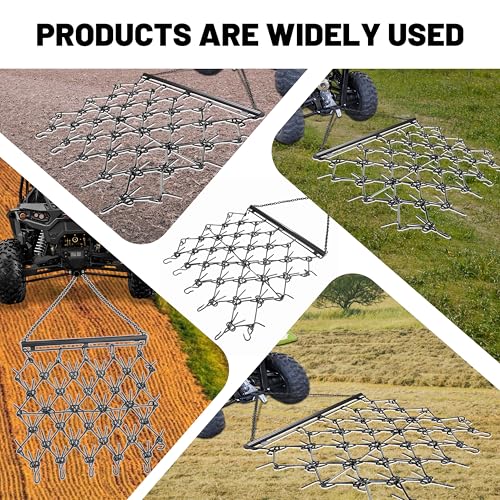

Grading Driveways, Leveling Acreage, and Grooming Surfaces Behind Light Equipment
If you're maintaining a gravel driveway, leveling a yard or pasture, or prepping a field for seeding, this harrow covers those tasks in one implement by flipping between two working orientations.
Tines down puts the aggressive setting into use for breaking up soil clumps, redistributing compacted gravel, and disrupting surface vegetation. Flipped to the smooth side, it finishes the surface after initial passes. The 45-inch working width covers ground efficiently behind a lawn mower or ATV, and the fold-down design means it stores without taking up full floor space in a shed.
At just under 4 feet wide, it suits properties up to a few acres without requiring a commercial-grade towing vehicle.
What to Expect from the Kuafu Chain Drag Harrow in Real Use
The harrow is consistently described by verified buyers as solidly built and noticeably heavy for its size category, which contributes to its effectiveness on packed gravel and rough soil without requiring added ballast.
Multiple buyers have used it on gravel driveways, with one reporting no visible wear after more than a dozen passes on a 300-foot stone driveway. The tines-down aggressive setting handles breaking up soil clumps and redistributing displaced gravel, while the flipped smooth setting finishes surfaces after initial passes.
One buyer leveled 2.5 acres behind a 600cc side-by-side without the unit bogging down. Another found it thinned and thatched surface weeds and grass during a single pass, which is a useful secondary result for overseeding preparation.
Adding weight on top improves penetration on harder ground, consistent with how chain harrows in this category perform. Setup from unboxing to first use is reported as taking approximately five minutes, with the included hook connecting directly to standard mower and tractor hitch points.
Real-world performance notes sourced in part from verified Amazon customer purchases.
Frequently Asked Questions
What is the difference between the aggressive and smooth settings, and when do you use each?
The harrow flips to change which side contacts the ground. Tines facing down is the aggressive setting, used for breaking up soil clumps, disrupting compacted gravel, and working rough or uneven ground. Flipped to the opposite side, the smooth setting finishes the surface after the initial pass, leveling and redistributing loosened material.
Most operators run the aggressive setting first, then follow with the smooth setting on the same area to achieve a finished grade. This two-pass approach is particularly effective on gravel driveways and pastures with significant surface irregularity.
Does this harrow require any tools or hardware to set up out of the box?
No tools are required. The unit connects to a standard 2-inch trailer ball hitch using the included hook, and verified buyers report going from unboxing to first use in approximately five minutes.
The package does not include mounting accessories beyond the hook, and no printed instructions are included. The connection and flip mechanism are straightforward enough that most operators work through setup without documentation.
Is 4 HP enough, or do you need a larger tractor or UTV to pull this effectively?
The manufacturer rates the minimum pull requirement at 4 HP, which puts it within reach of most residential lawn tractors and light ATVs. Verified buyers have used it behind lawn mowers and mid-displacement side-by-sides across acreage up to 2.5 acres without towing issues.
On harder or heavily compacted ground with added ballast weight on top, a vehicle with more torque will perform more consistently. For standard yard, driveway, and light pasture use, a typical lawn tractor or ATV in the 400 to 600cc range is sufficient.
