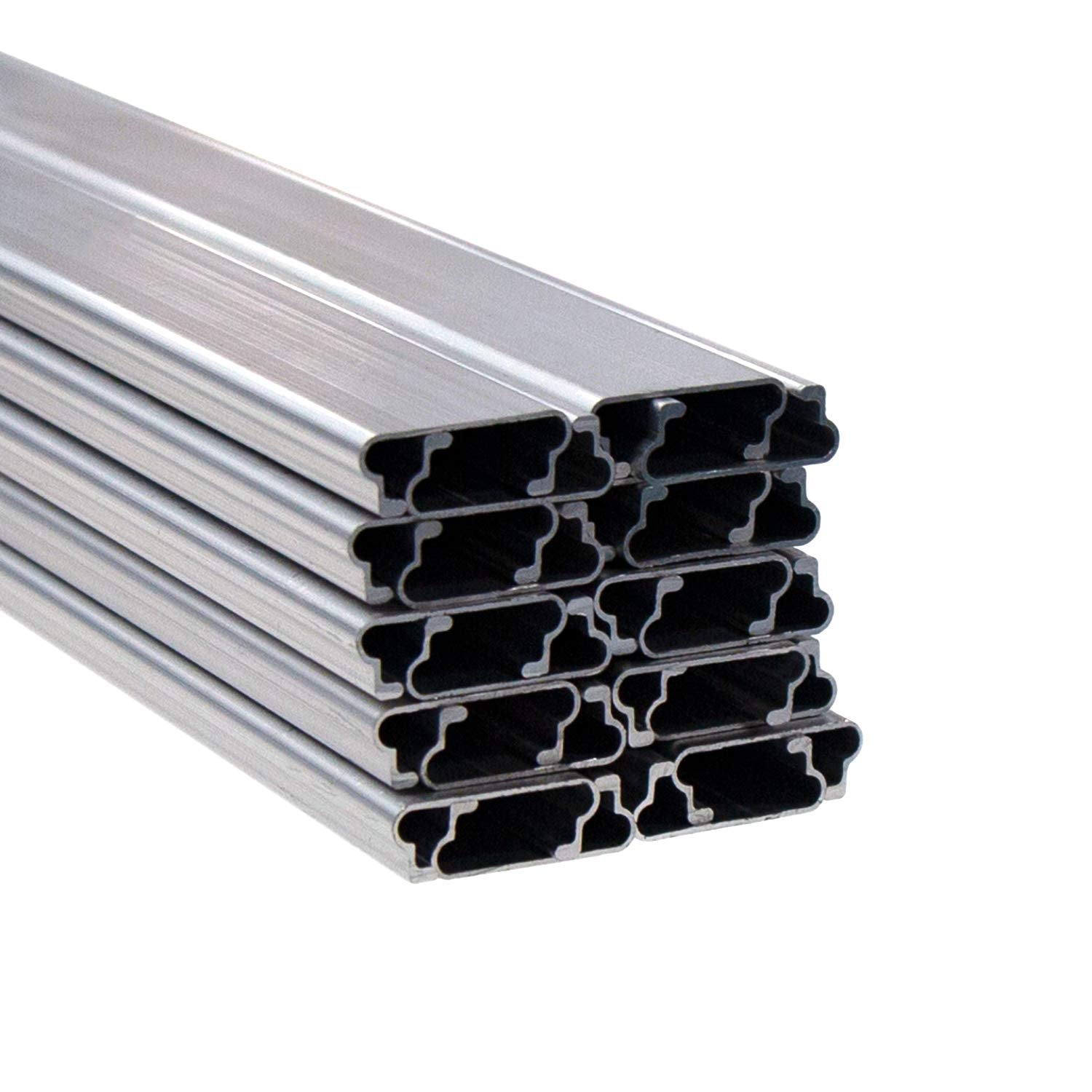

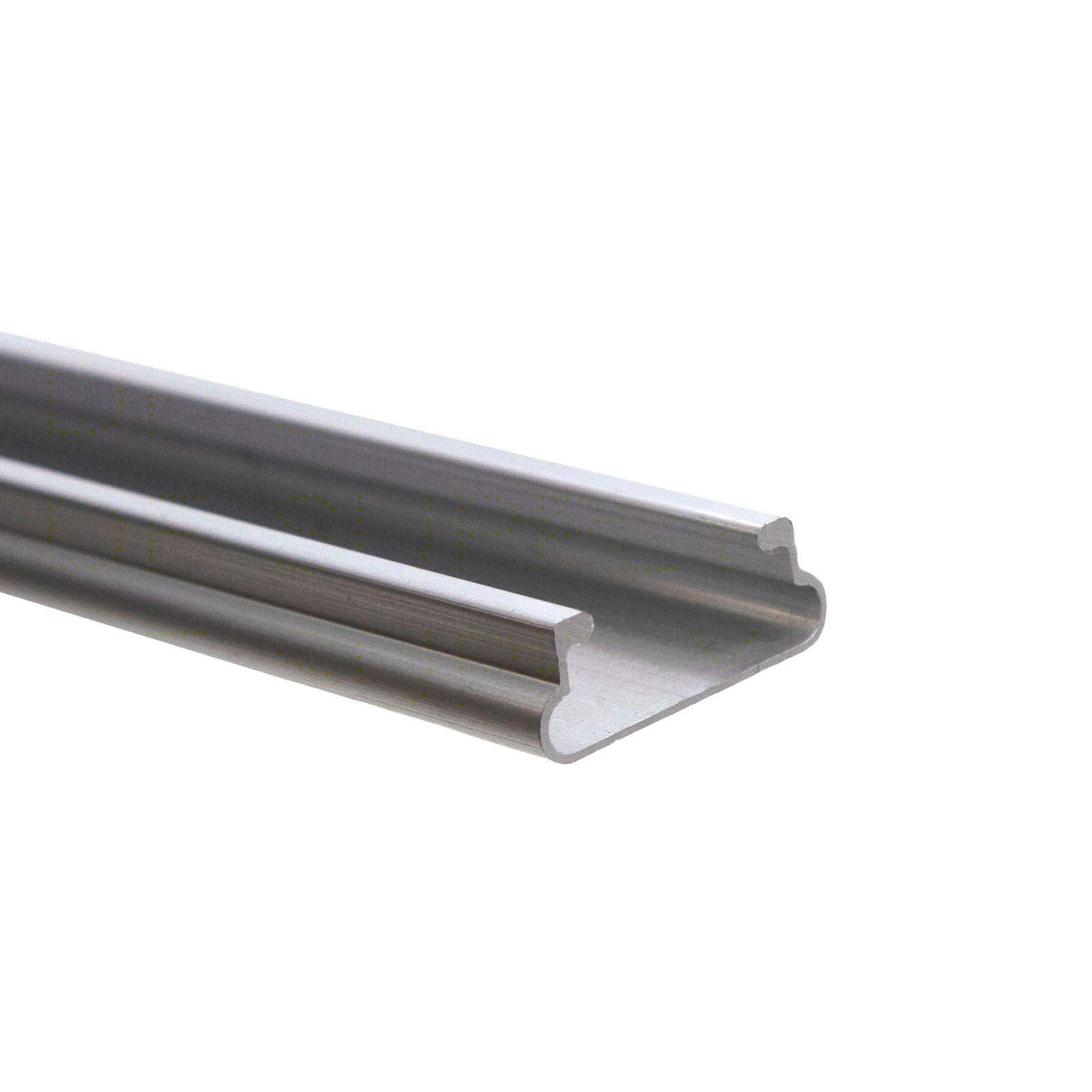

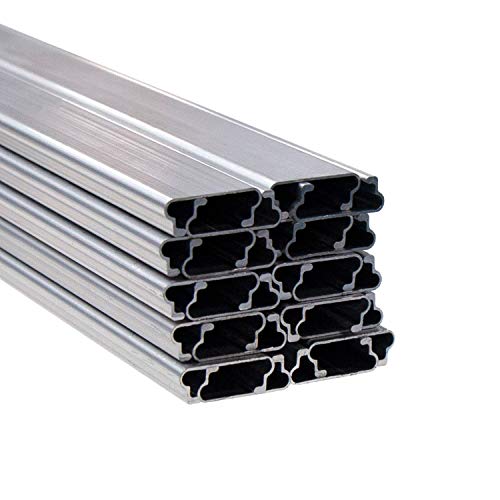

Jiggly Greenhouse's aluminum lock channel is a film retention extrusion for greenhouse, high tunnel, and enclosed growing structure builders who need a rust-free channel that supports dual wiggle wire installation for multi-layer film or shade cloth applications. At 6 feet 6 inches long and 1 inch wide, it mounts to wood or steel frames using pre-drilled holes or self-tapping screws.
The dual wire capacity is a meaningful distinction from standard single-wire channels, making it suited for inflated double-layer poly installations. Wiggle wire and mounting screws are sold separately and need to be ordered alongside the channel.
Specifications
-
Material: Aluminum extrusion, rust-free
-
Length: 6 feet 6 inches
-
Width: 1 inch
-
Wire Capacity: Holds up to 2 wiggle wires simultaneously
-
Film Capacity: Multi-layer film or shade cloth up to 20 mil thick
-
Frame Compatibility: Wood and steel framing
-
Installation: Pre-drilling or self-tapping screws recommended
-
Included: Channel only. Wiggle wire and screws sold separately.
-
Cuttable: Yes
Whether This Channel Fits Your Double-Layer Poly Greenhouse or High Tunnel Build
If you are building a high tunnel with chain link top rail pipe, a PVC-framed greenhouse with wood nailer strips, or any structure where you want to run two layers of poly film for insulation, this channel's dual wire capacity addresses that requirement directly.

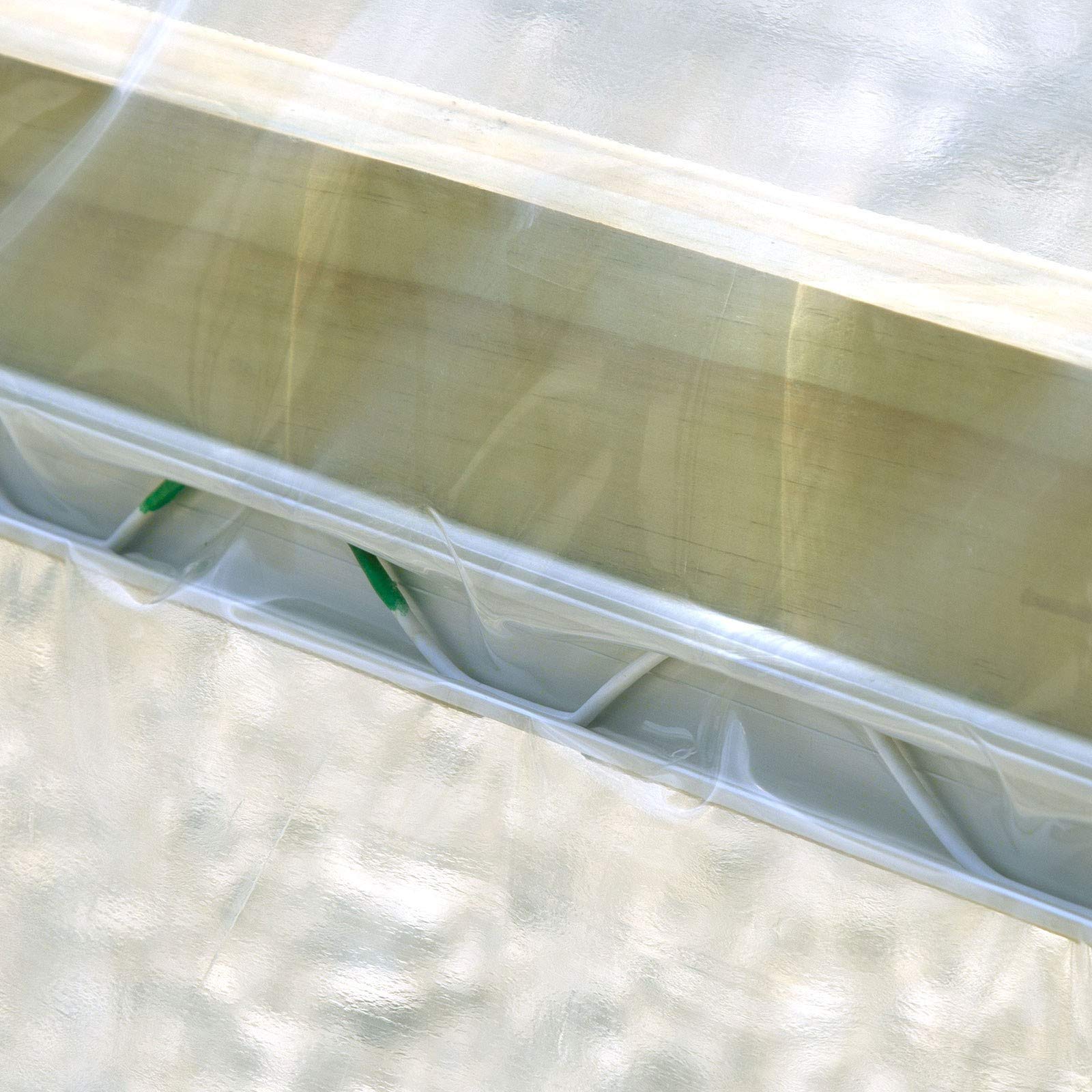

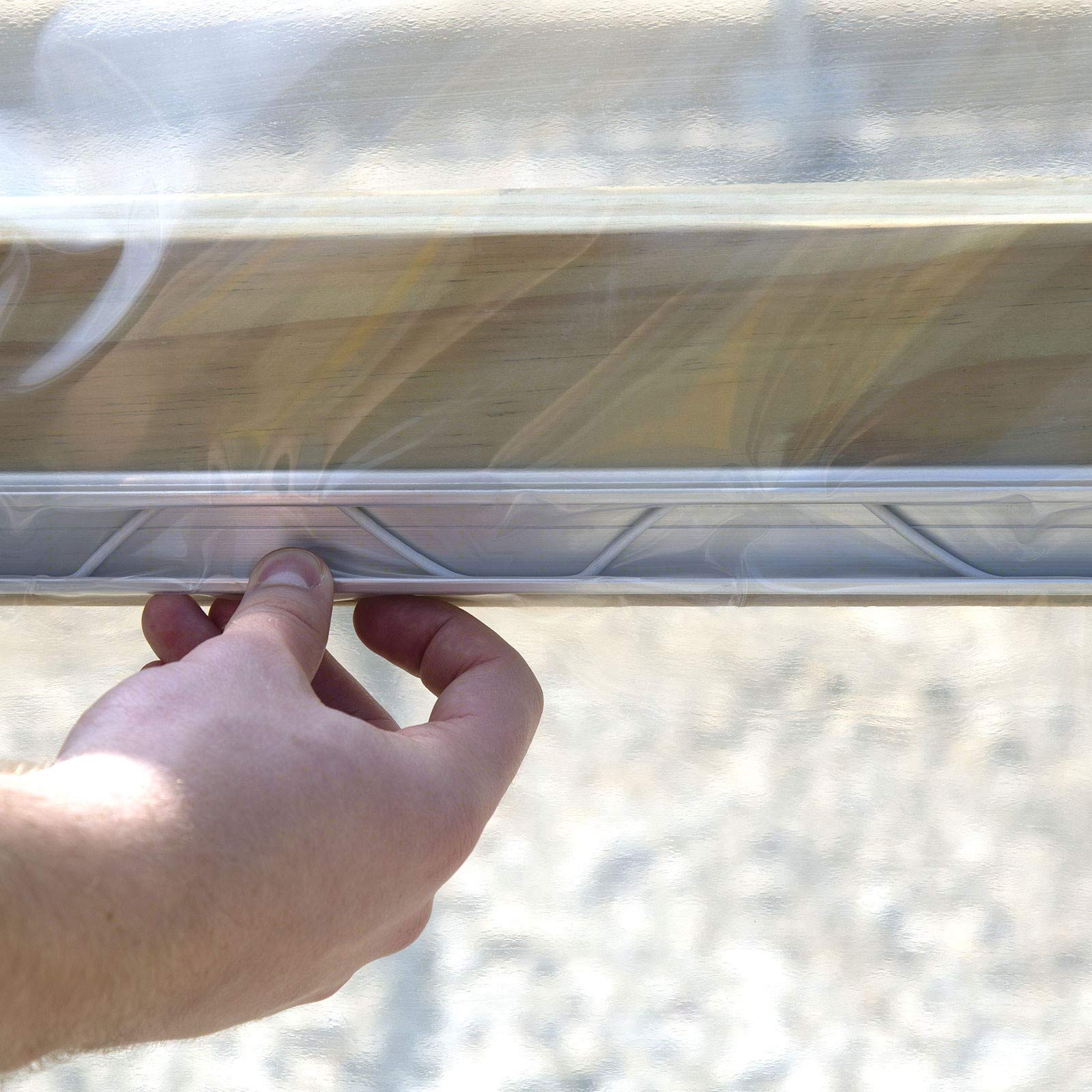

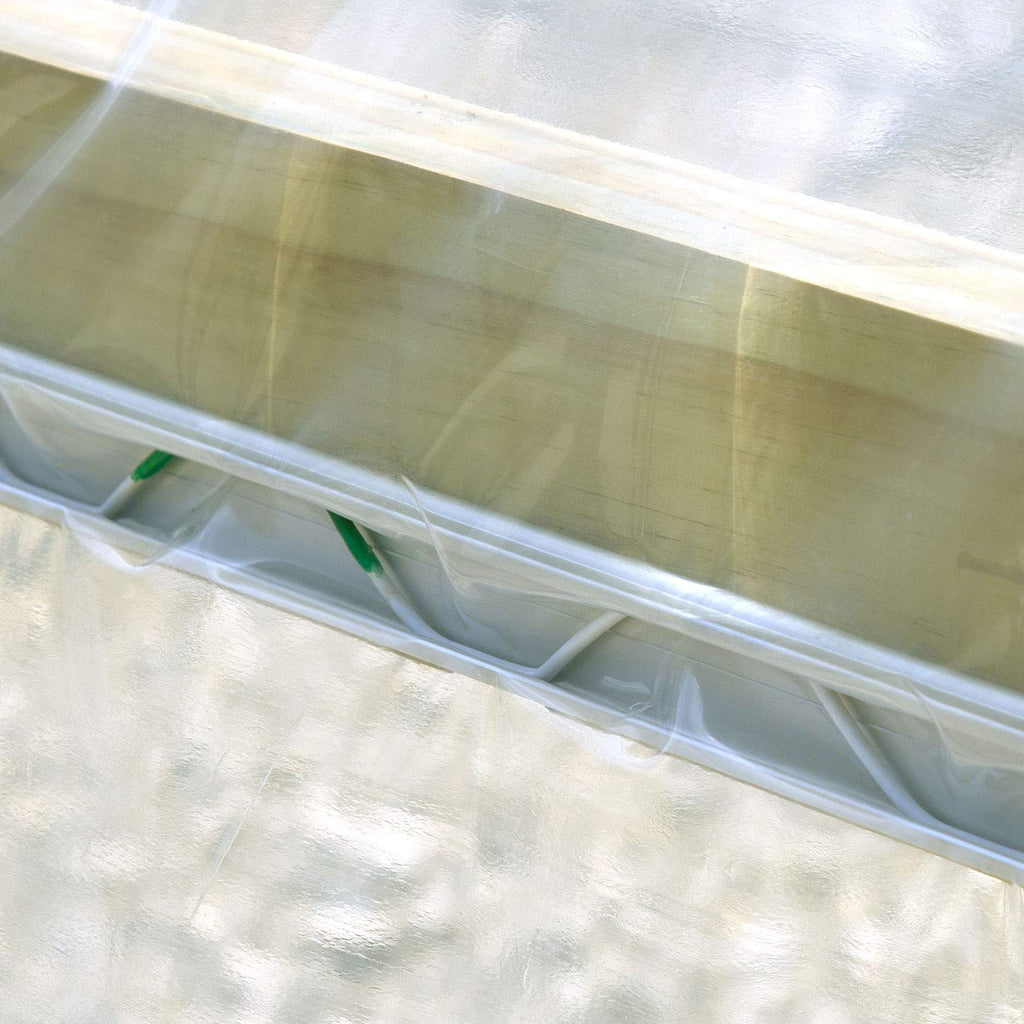

Single-wire channels cannot support inflated double-layer installations because there is only one retention point, meaning the inner and outer film cannot be secured independently in the same channel. The 1-inch Jiggly channel holds two wires side by side, which allows you to lock each film layer separately in the same channel position.
For single-layer film or shade cloth applications, it functions the same as standard channel with one wire inserted. The aluminum extrusion cuts cleanly to length with a reciprocating saw or hacksaw, and screw spacing along the channel is at your discretion based on your frame layout and local wind conditions.
What to Expect from the Jiggly Greenhouse Aluminum Lock Channel in Real Use
Verified buyers have used this channel on high tunnels built from chain link top rail pipe and on PVC-framed structures with wood nailer strips attached. On a 20-foot high tunnel, the channel performed reliably for stretching and securing poly film over the curved frame.
For PVC builds where attaching channel directly to the pipe is not practical, mounting wood strips to the PVC and then screwing the channel to the wood is a documented field approach that works well. Buyers who have used other film attachment methods describe the wiggle wire channel system as significantly easier and note they wished they had used it sooner.
Note that wiggle wire is not included with the channel and must be ordered separately. At least one buyer specifically flags this to ensure others order the wire alongside the channel for a complete installation-ready kit.
Real-world performance notes sourced in part from verified Amazon customer purchases.
Frequently Asked Questions
What is the advantage of a dual wire channel over a standard single wire channel?
A dual wire channel allows you to insert two separate wiggle wires into the same channel, which makes it possible to secure two independent layers of poly film in a single channel position.
This is the standard method for inflated double-layer greenhouse installations, where the inner and outer film must each be held separately to maintain the air gap between them that provides insulation value. With a single-wire channel, you can only secure one layer per channel position, which means double-layer inflation is not possible in that configuration.
Does wiggle wire from other brands work in this channel, or does it require Jiggly brand wire?
The channel is 1 inch wide, which is narrower than the standard 1.25-inch channel profile used by most other greenhouse channel brands. This means standard 1.25-inch wiggle wire from other brands will not fit this channel.
You need to use Jiggly brand wiggle wire, which is sized specifically for the 1-inch Jiggly channel profile. Ordering channel and wire from different brands without confirming the profile dimensions will result in a mismatch that prevents the wire from seating correctly.
How do you mount this channel to a PVC pipe greenhouse frame?

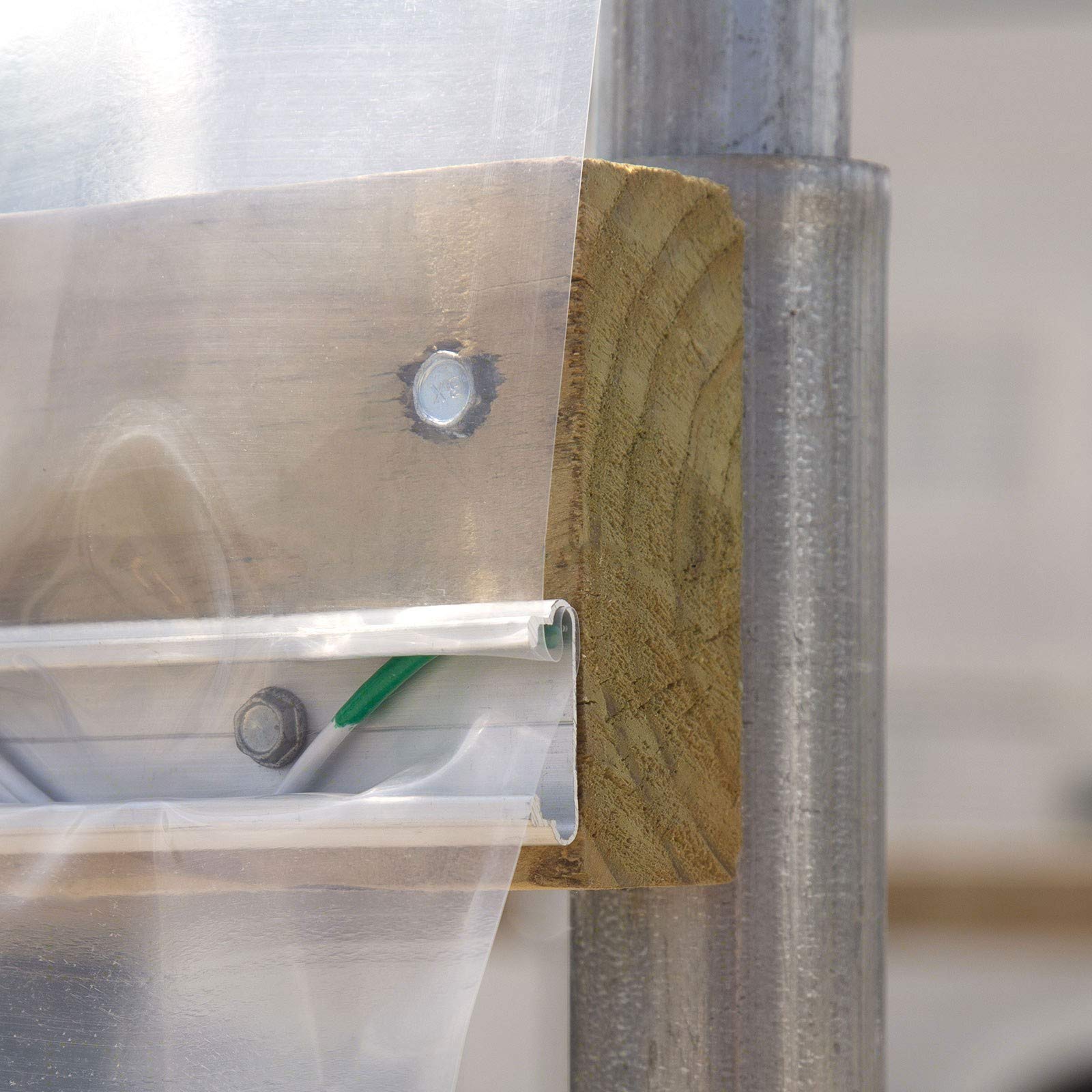

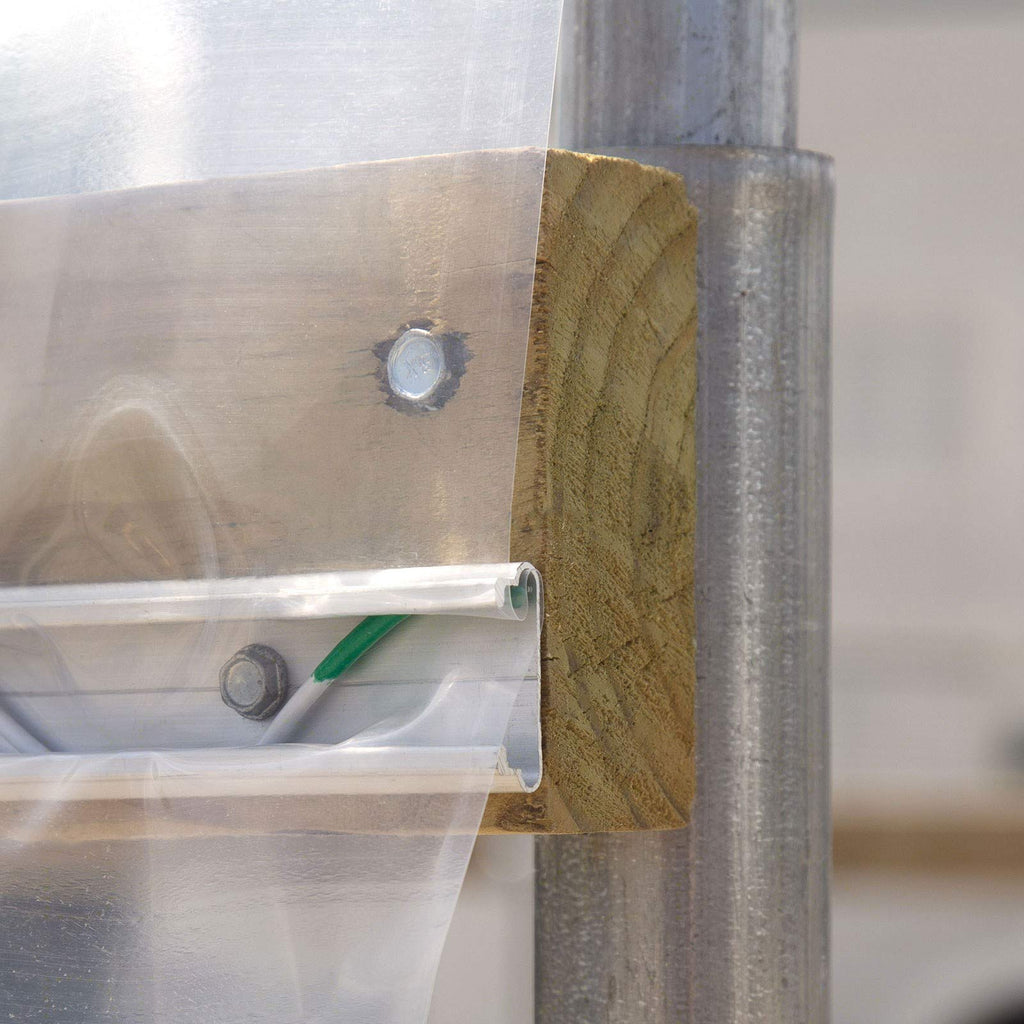

PVC pipe does not provide a solid surface for direct screw attachment, so the standard approach is to attach wood nailer strips to the PVC pipe along the frame lines where channel is needed, then screw the aluminum channel to the wood strips using pre-drilled pilot holes or self-tapping screws.
The wood strips give the screws solid material to bite into and keep the channel from pulling free under film tension. This two-step approach is the documented field method for PVC-framed greenhouse builds using this channel system.
