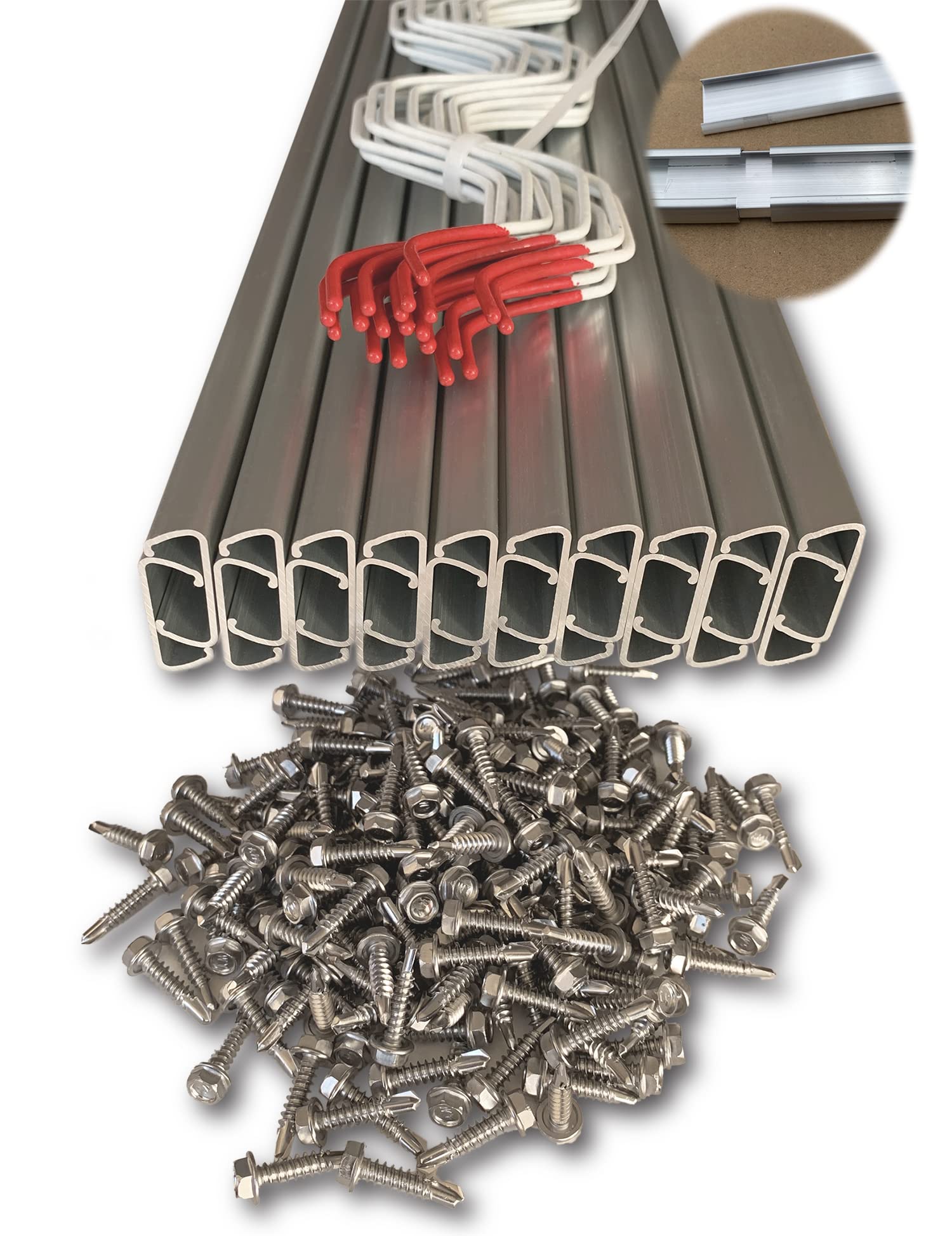

The Shans lock channel kit is a complete film retention system for greenhouse and high tunnel builders who want channels, spring wire, connectors, and mounting hardware in a single order.

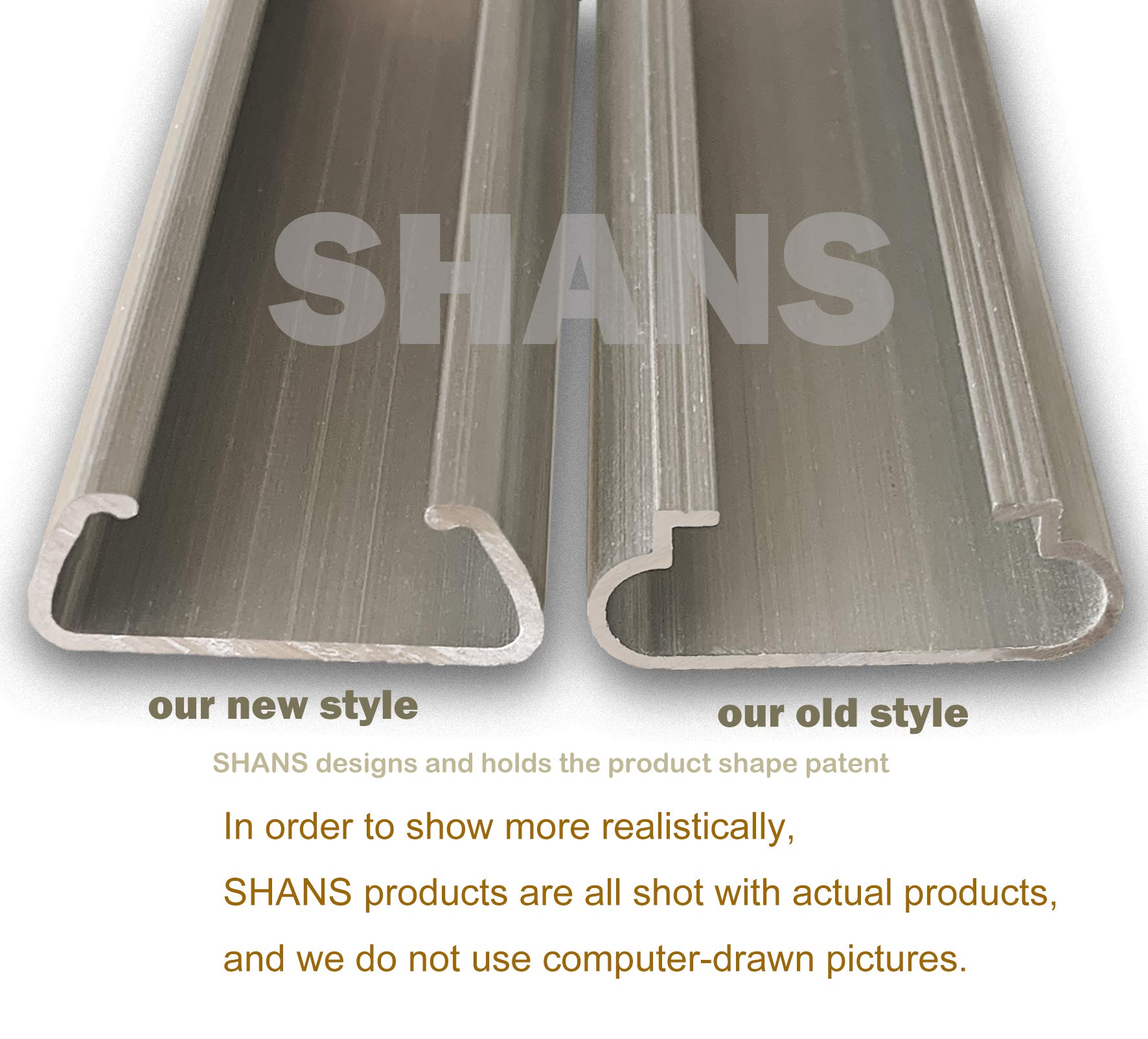

The second-generation channel design removes internal right-angle protrusions for easier spring wire insertion, increases channel wall thickness for structural durability, and uses air-cooled quenching to harden the outer layer for improved wind resistance.
The kit includes 180 stainless steel self-drilling screws, though some builders working with harder steel frames may find heavier-gauge replacement screws provide more reliable results.
Specifications
-
Channels Included: 30 aluminum lock channels, 6.5 feet each
-

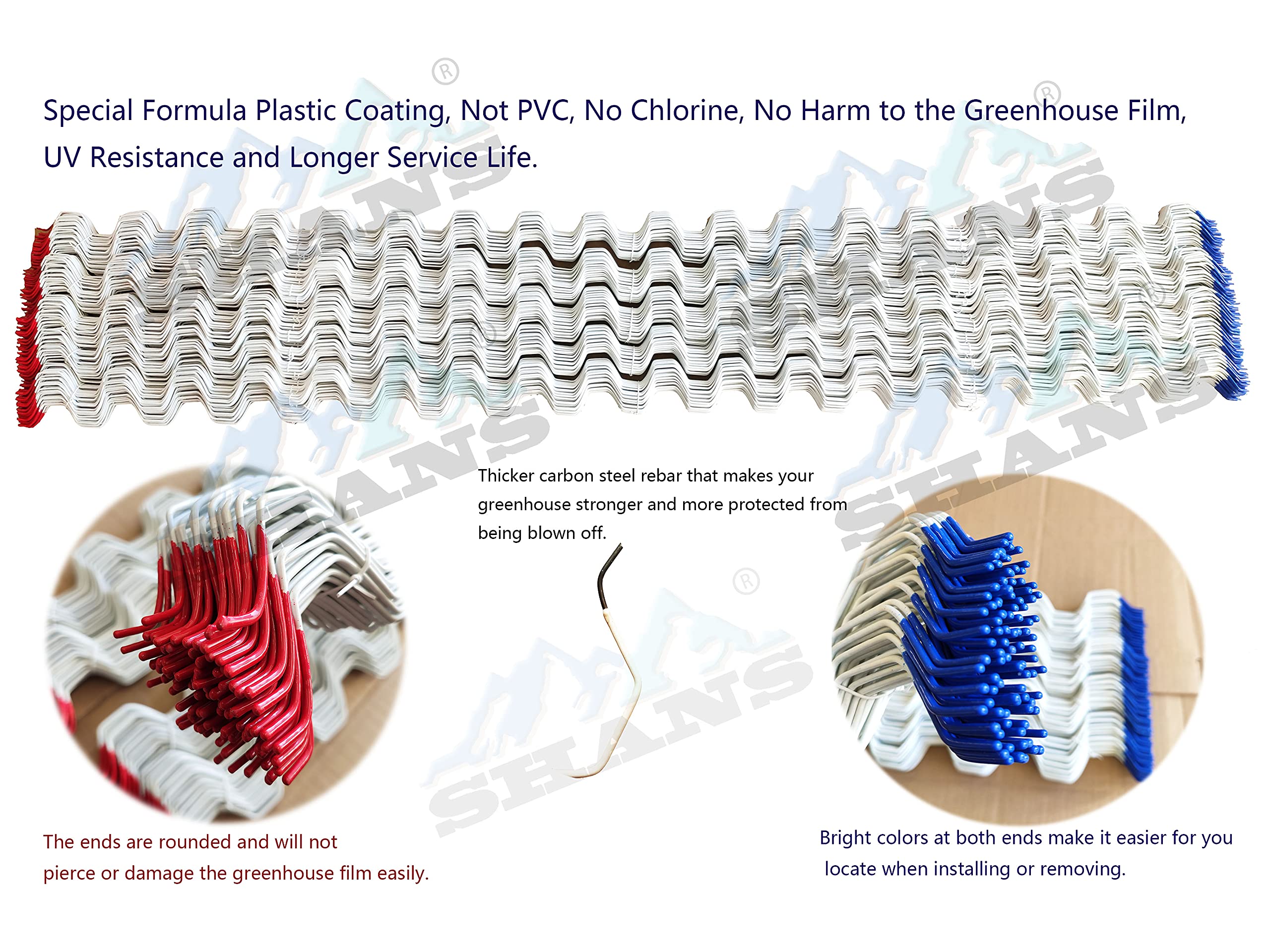

Spring Wires Included: 30 spring wires, 6.5 feet each
-

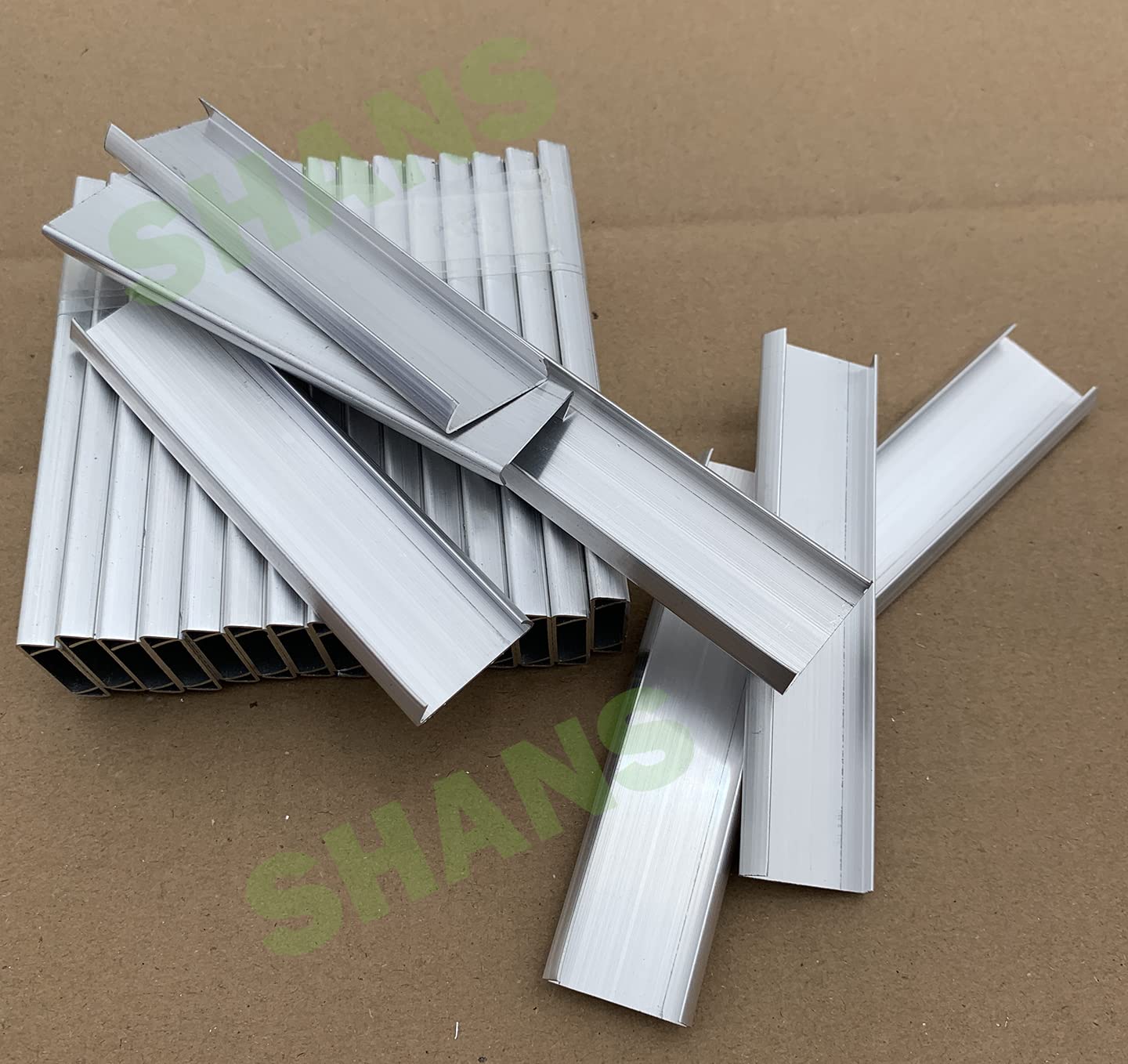

Connectors Included: 30 connectors, 4 inches each
-
Screws Included: 180 SUS 410 stainless steel self-drilling screws
-
Channel Generation: Second-generation design with redesigned internal profile
-

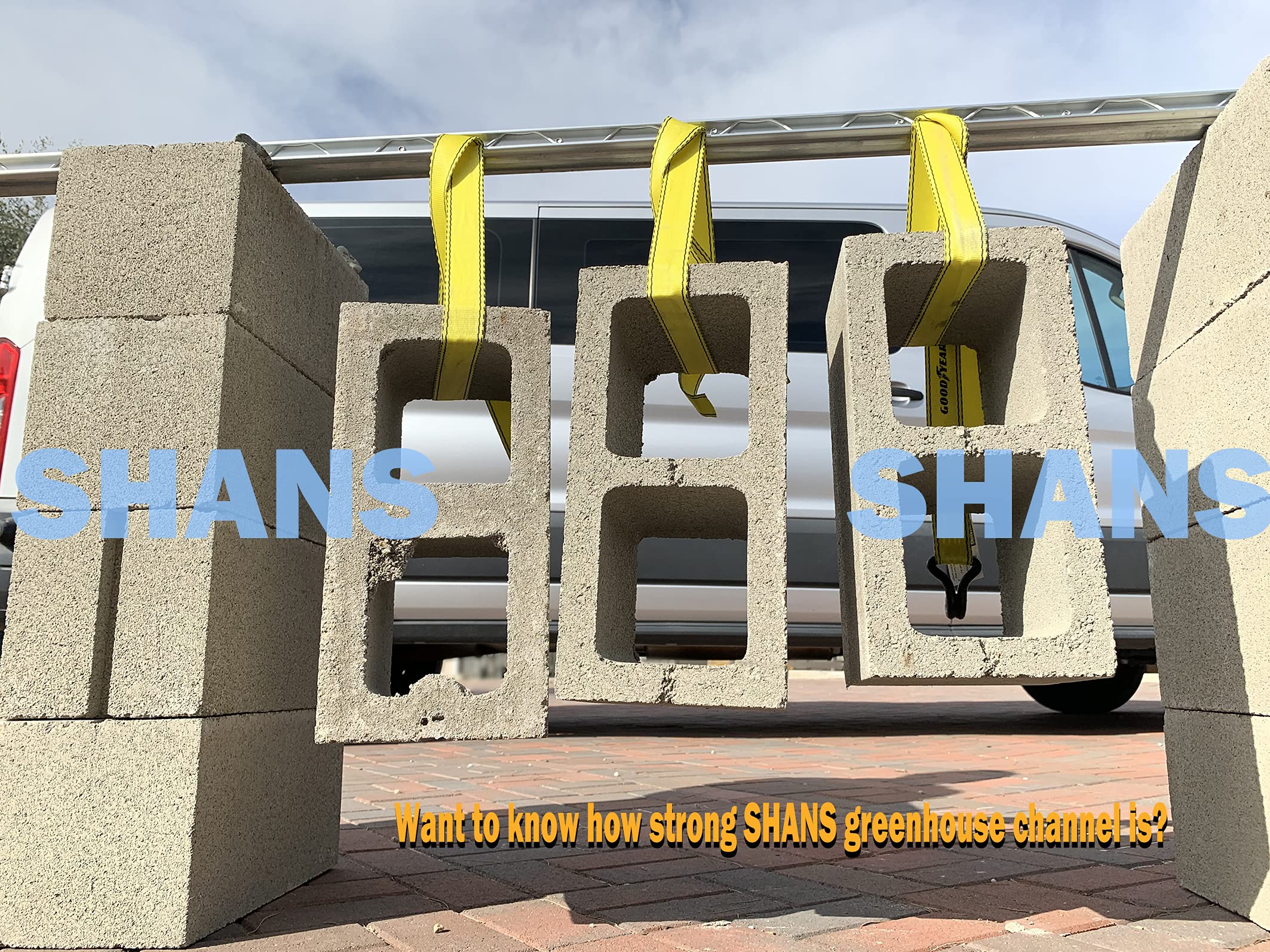

Channel Construction: Increased wall thickness, air-cooled quenching for outer hardness
-
Corrosion Resistance: Hardened oxidized layer
-
Flexibility: Bends to follow curved hoop profiles without breaking
-
Frame Compatibility: Wood and steel frames
Whether This Kit Fits Your Greenhouse Build, High Tunnel, or Covered Structure Project
If you are building a greenhouse, high tunnel, chicken run cover, or other poly-covered structure from scratch and want to avoid sourcing channels, spring wire, connectors, and screws separately, this kit packages all four components together in matched quantities.
The 30-channel, 30-wire configuration covers structures where a single continuous run per channel length is needed, with connectors handling the joins between channel sections on longer spans. The redesigned internal channel profile without right-angle protrusions makes spring wire easier to press in and pull out compared to first-generation designs, which matters for growers who remove and reinstall film seasonally.
The channel bends to follow curved hoop profiles with assistance from a ladder or straight edge as a bending guide, and two-person installation is recommended for managing longer channel sections during the bending and mounting process.
What to Expect from the Shans Lock Channel Kit in Real Use
Verified buyers have used this kit for greenhouse plastic retention, chicken run winter covers, and exterior window insulation with poly sheeting. For greenhouse applications, buyers confirm the channel holds plastic sheeting securely and installs without specialized tools.
The channel depth and included connectors are specifically noted as design advantages over competing products. For curved hoop structures, bending the channel over a ladder or pipe to match the hoop profile is the documented field technique, and two people make that process easier.
On the included screws, at least one buyer reports the self-drilling screws breaking during installation into harder steel, and recommends substituting heavier-gauge screws such as number 12 size for steel frame applications. The channels and spring wire themselves receive consistent positive feedback on construction quality and ease of use independent of the screw issue.
Real-world performance notes sourced in part from verified Amazon customer purchases.
Frequently Asked Questions
What are the 4-inch connectors for, and when do you need them?

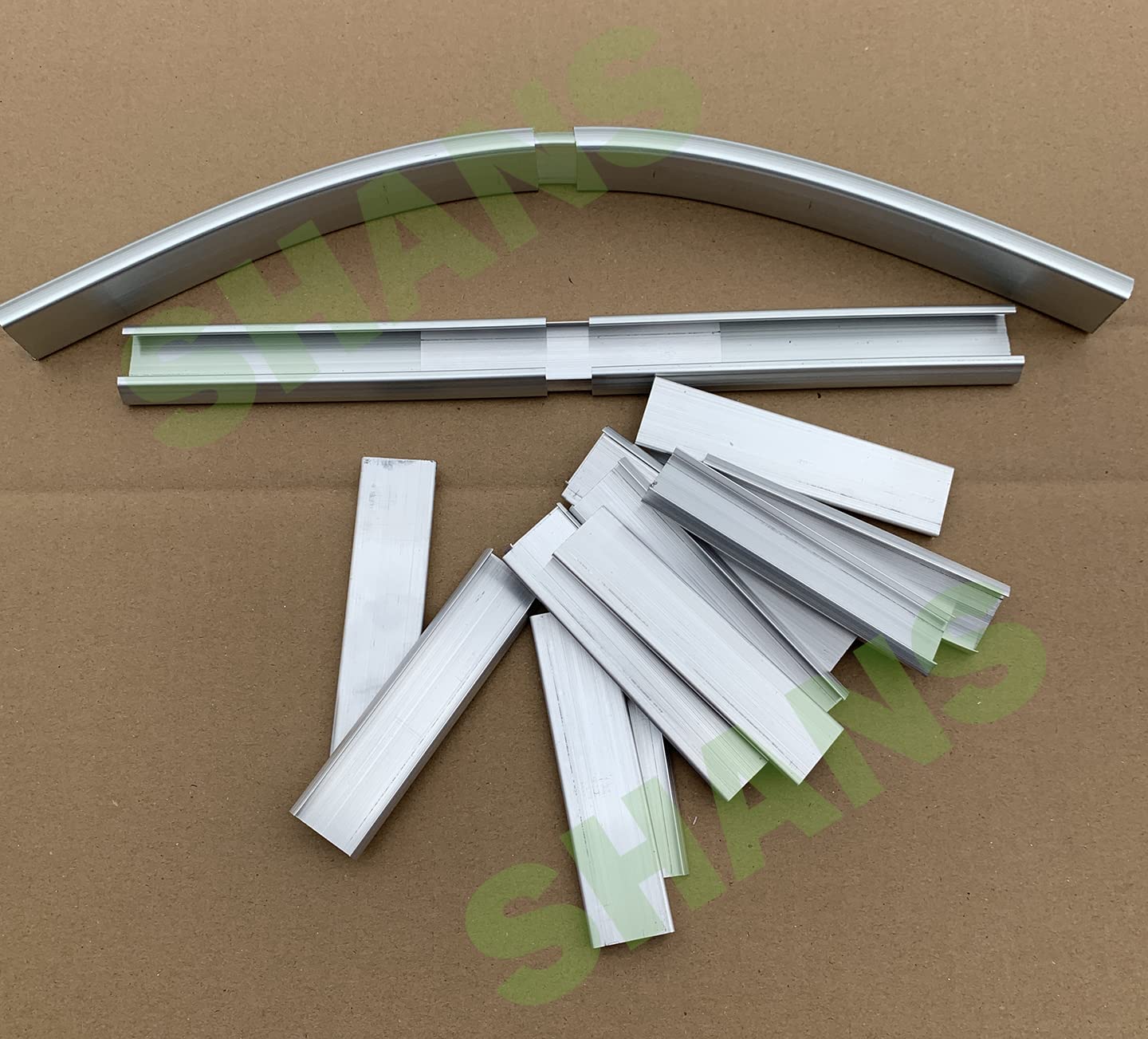

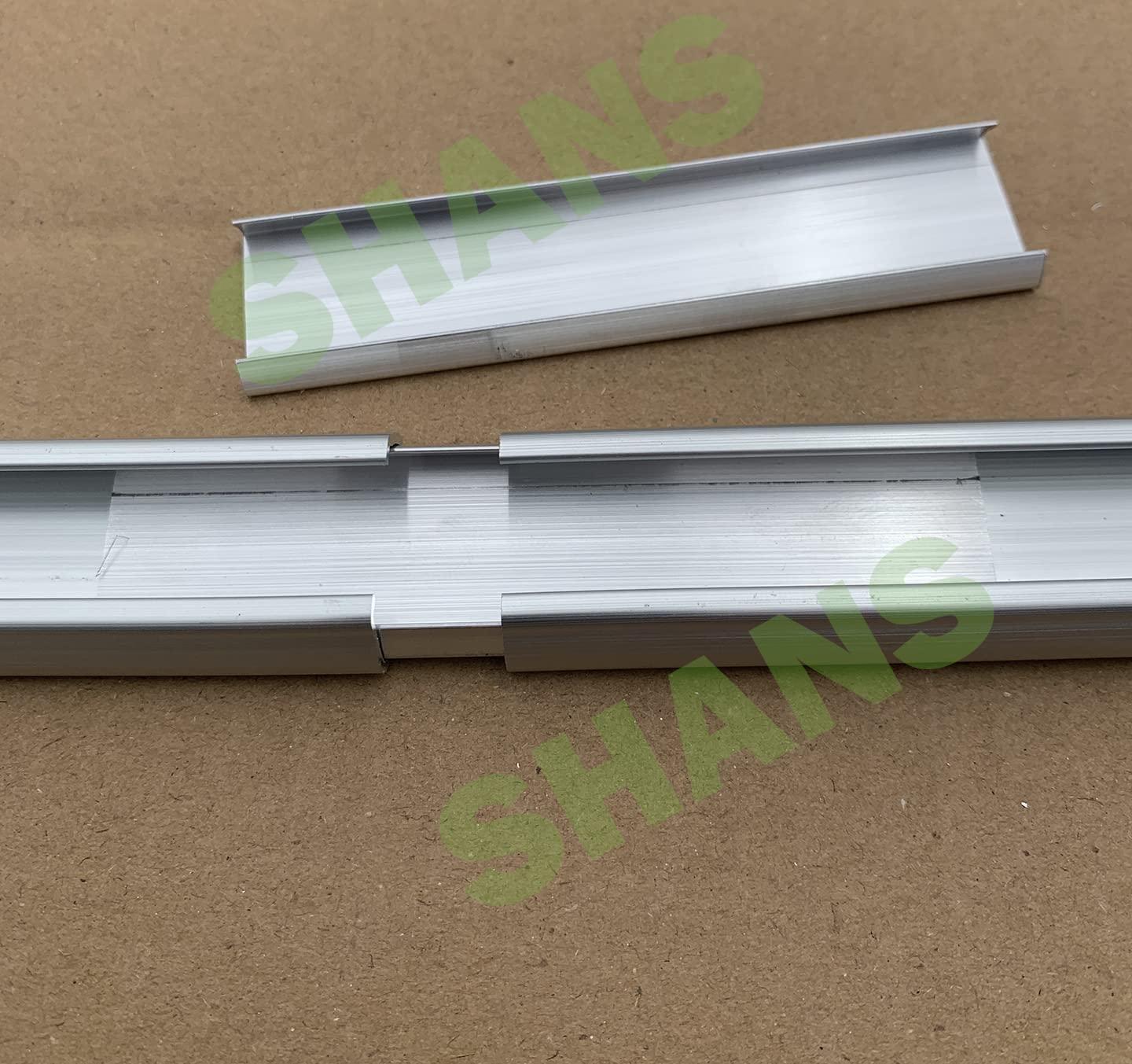

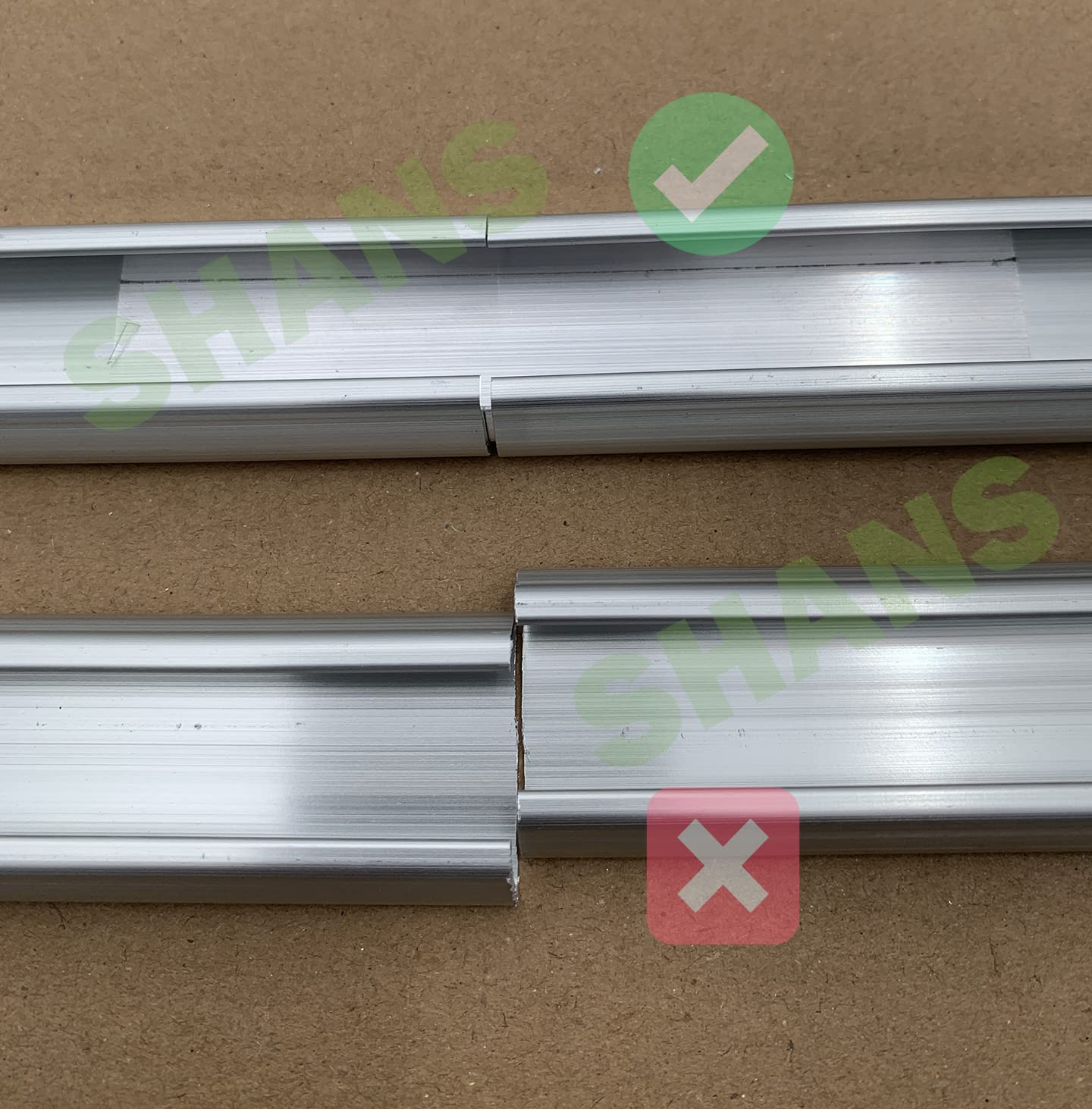

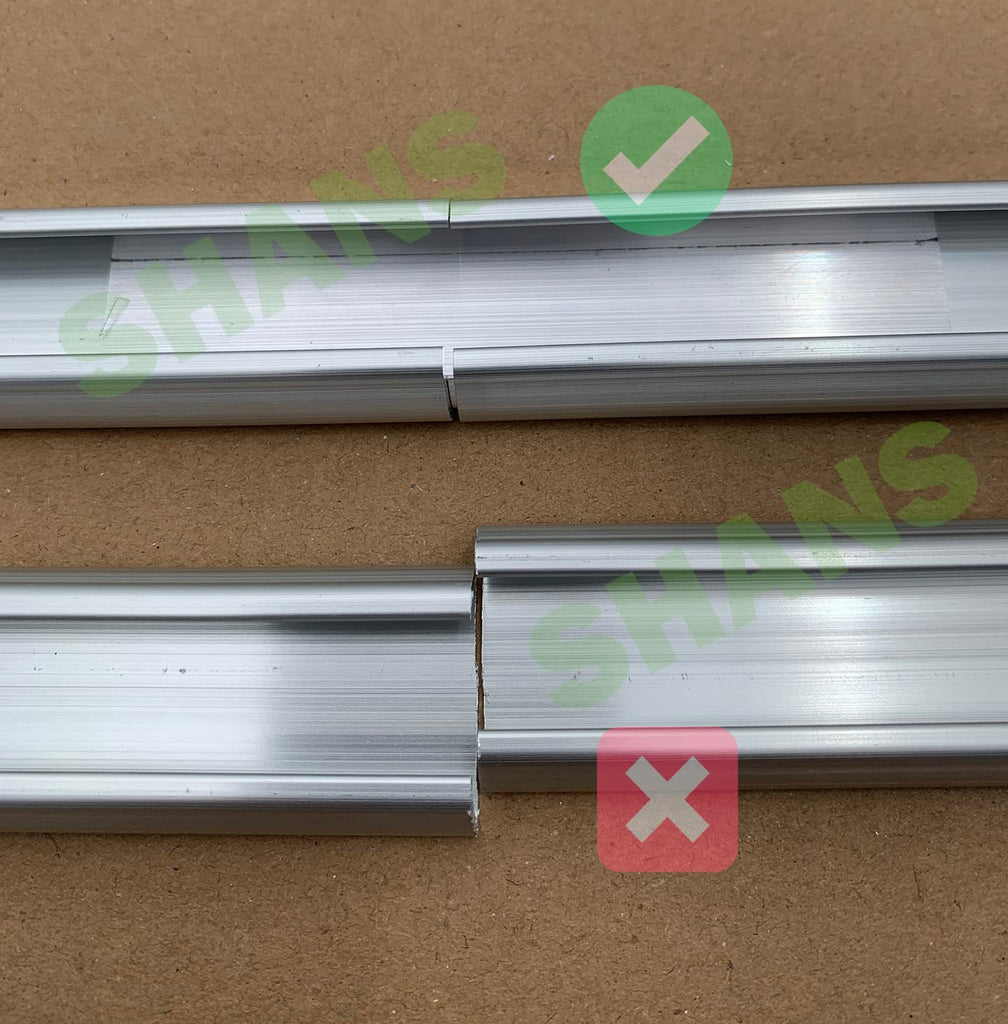

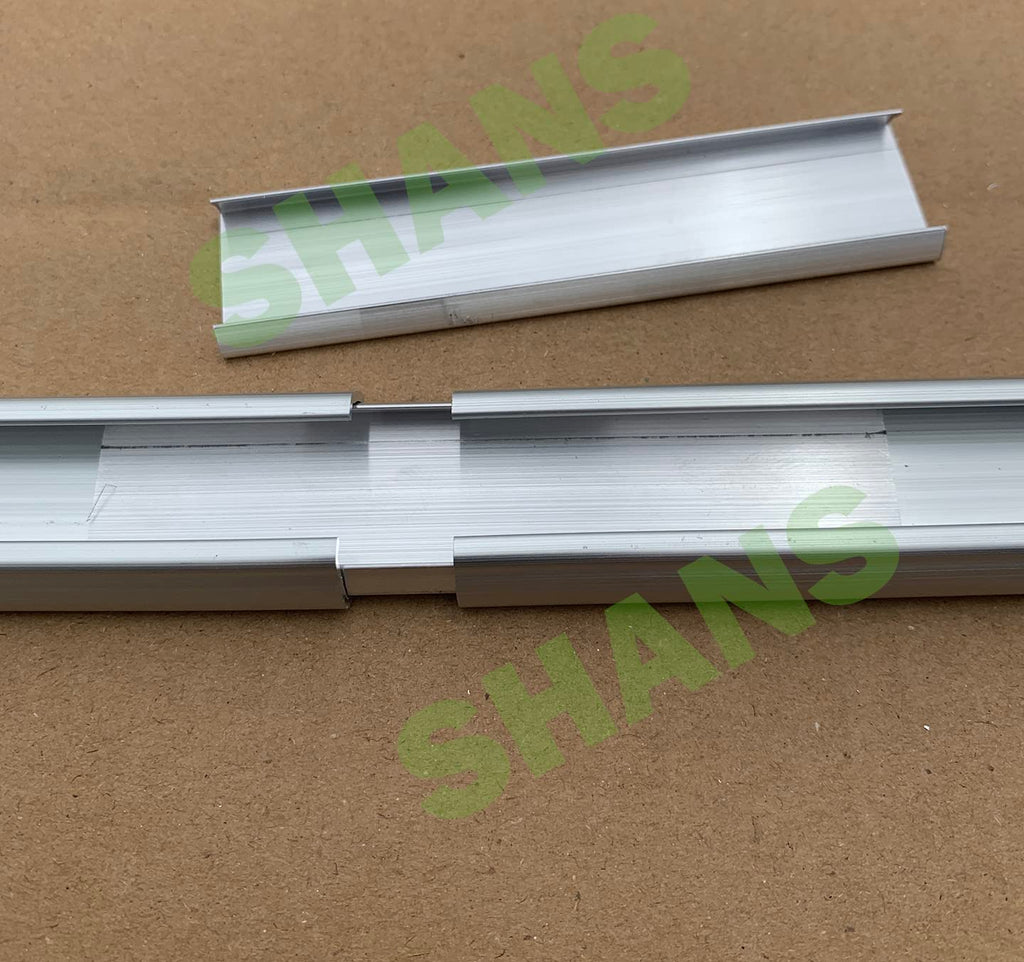

The connectors are used to join two channel sections end-to-end on frame runs longer than 6.5 feet. You slide a connector into the open end of one channel, then push the next channel section onto the other end of the connector, creating a continuous channel run across the joint.
This keeps the channel aligned and prevents gaps where film could slip out between sections. For frame sections shorter than 6.5 feet, you cut the channel to length and the connectors are not needed.
Do the included self-drilling screws work on both wood and steel frames?
The included SUS 410 stainless steel self-drilling screws are designed to work without pre-drilling on both wood and light steel tube frames. For heavier-gauge steel frames, the included screws may not be strong enough to drive cleanly without breaking.
In that case, substituting heavier-gauge self-drilling screws, such as number 12 size, provides the additional strength needed to drive through the channel and into the steel frame reliably. For wood frames, the included screws are generally adequate.
How do you bend the channel to fit a curved hoop tunnel?
The aluminum channel bends without cracking or losing its profile when worked gradually over a curved surface. Placing the channel over a ladder rung, a pipe, or another curved form that matches your hoop radius and bending it progressively along the length is the documented approach for matching the channel curve to the hoop profile.
Working with two people makes this easier, with one person holding the channel in position while the other applies even pressure along the bend. Avoid sharp, localized bends that could kink the channel profile.
