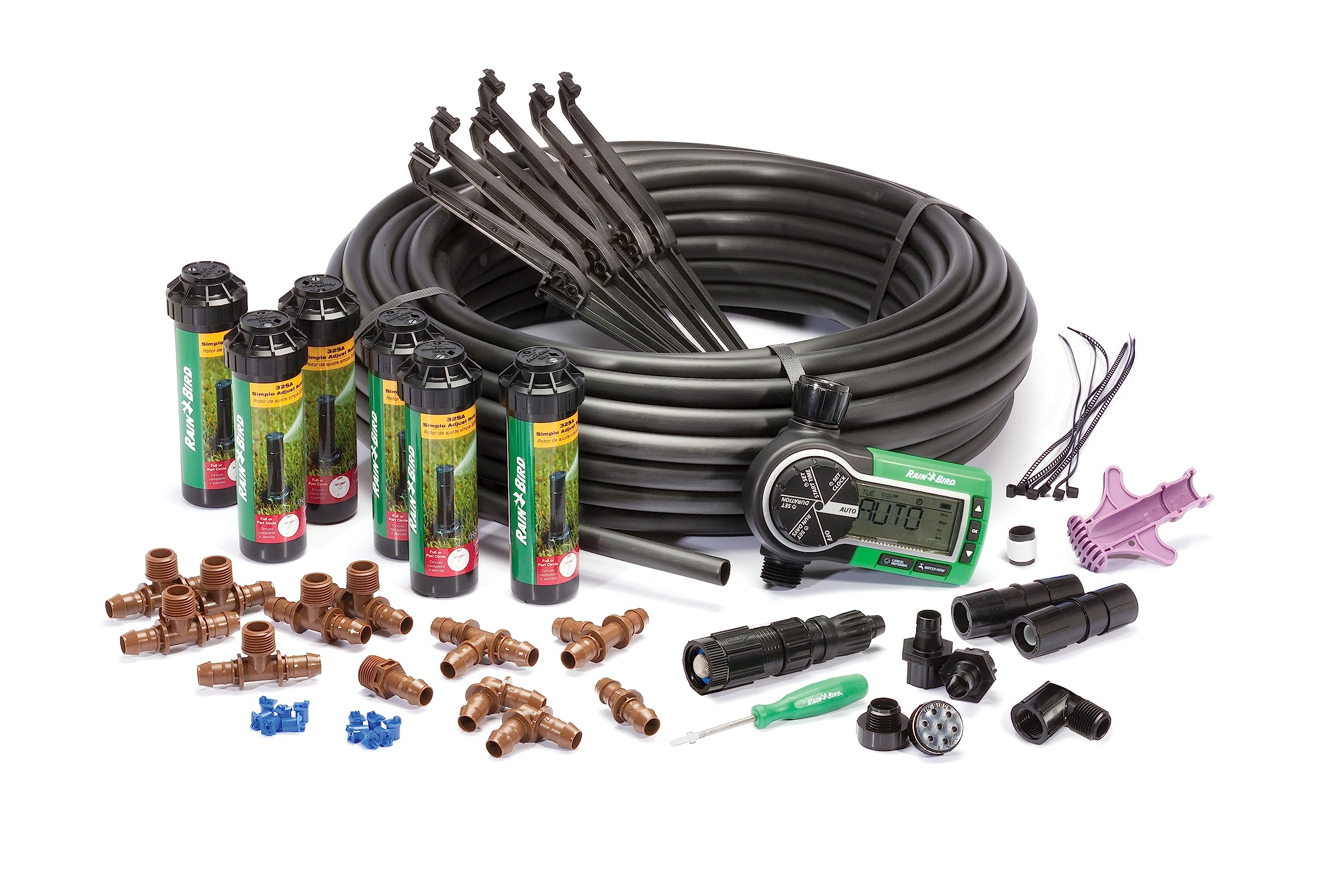

The Rain Bird 32ETI Automatic Sprinkler System Kit is a faucet-connected, in-ground irrigation kit designed for homeowners who want scheduled, hands-free lawn watering without hiring a contractor. It covers 1,000 to 3,000 sq. ft. using gear-drive rotor heads that retract after each cycle, and it includes a programmable hose-end timer.
The system requires adequate water pressure between 45 and 75 PSI to perform as designed, and expanding beyond the included components by adding extra tubing or additional rotor heads will reduce coverage performance.
Specifications
-
Coverage Area: 1,000 to 3,000 sq. ft.
-
Operating Pressure Range: 45 to 75 PSI
-
Rotor Type: 32SA gear-drive rotors, retractable
-

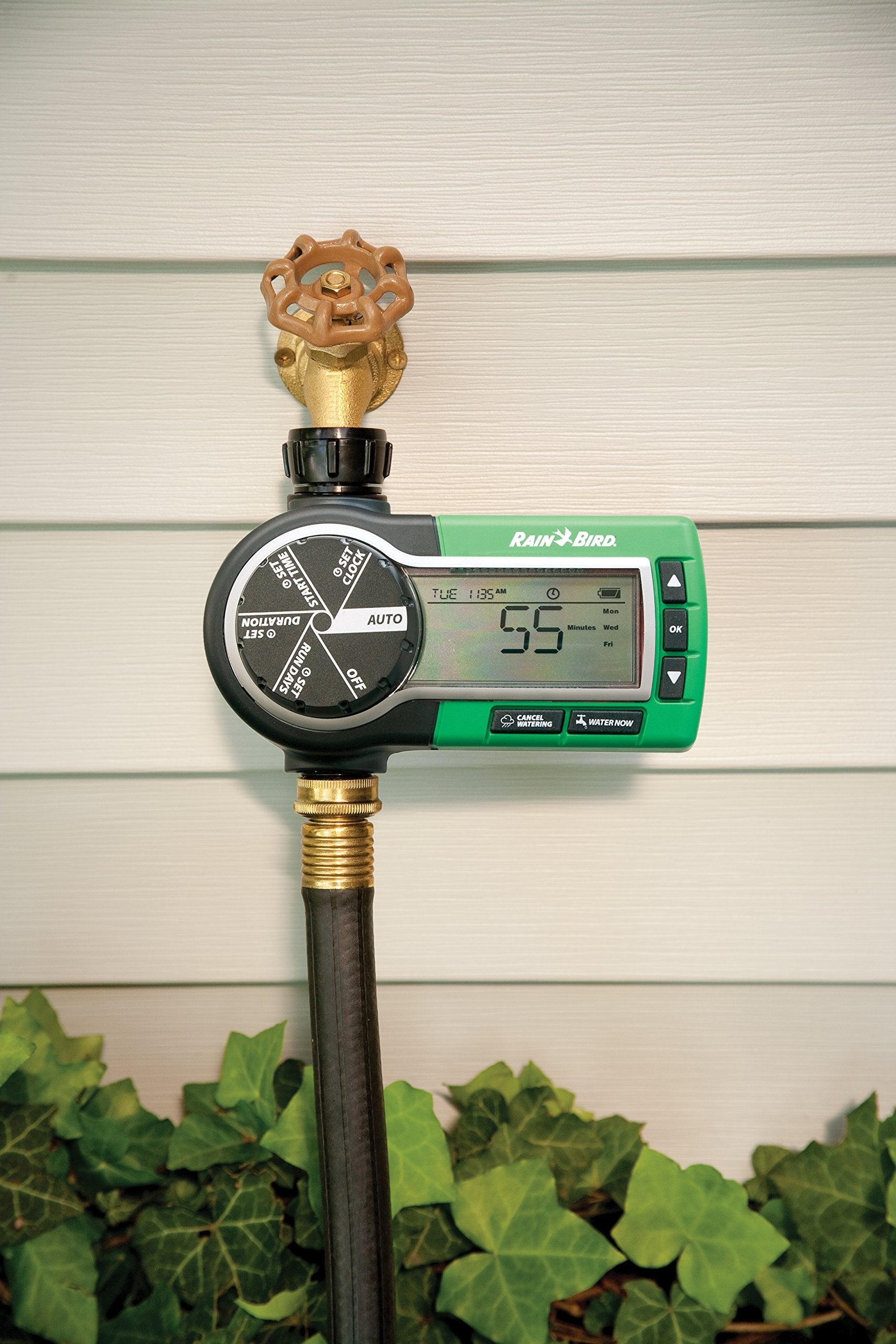

Timer: Hose-end programmable timer, up to 4 watering cycles per day
-
Supply Tubing Size: 1/2 inch
-
Connection: Standard outdoor faucet
-
Maximum Elevation Differential: Watered area should not exceed 6 feet above the water source
-
Expansion Limitation: System is not designed to be extended with additional tubing or rotors beyond included components
-
Digging Required: Shallow trenching for tubing placement
Whether the Rain Bird 32ETI Is the Right Fit for Your Yard and Water Supply

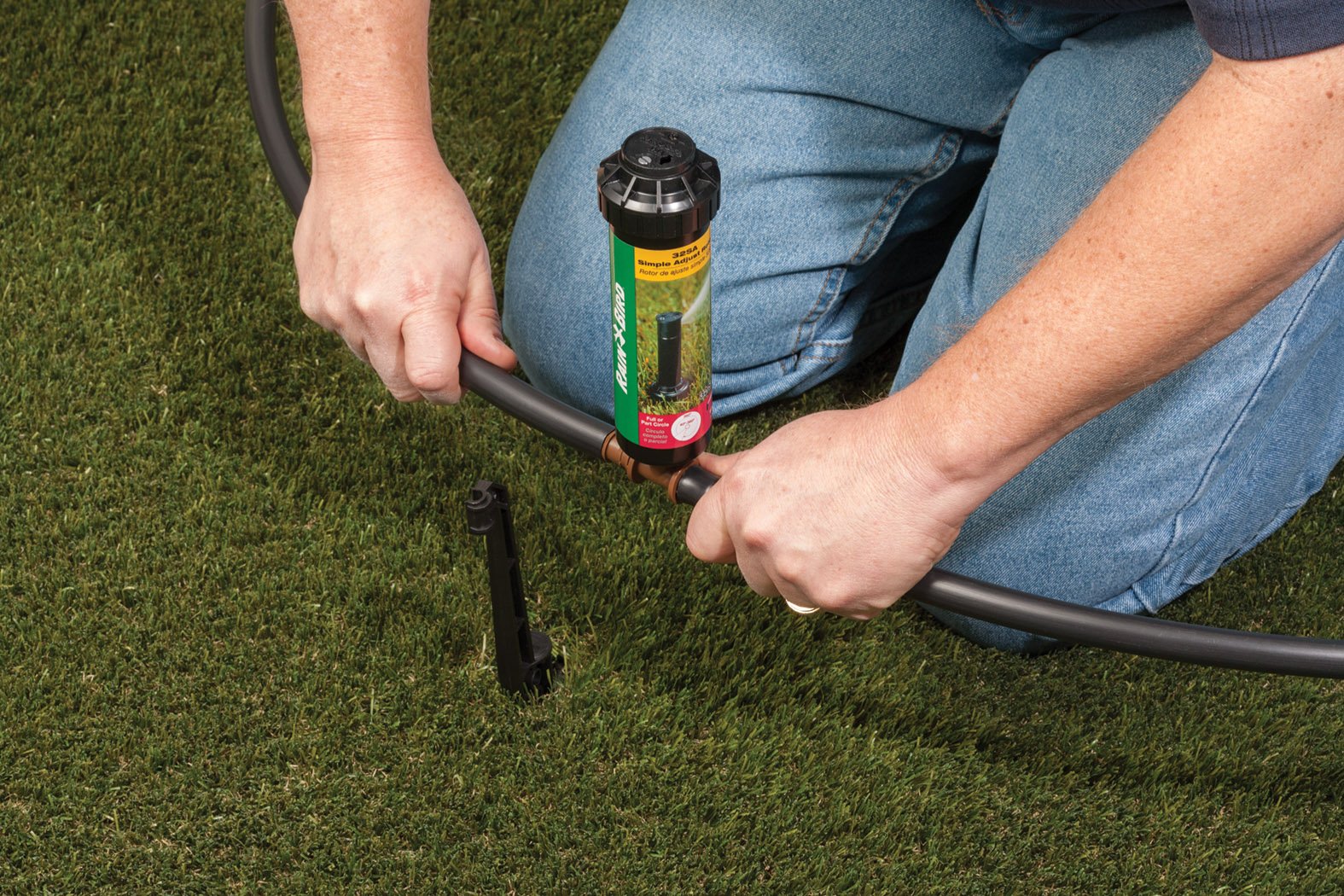

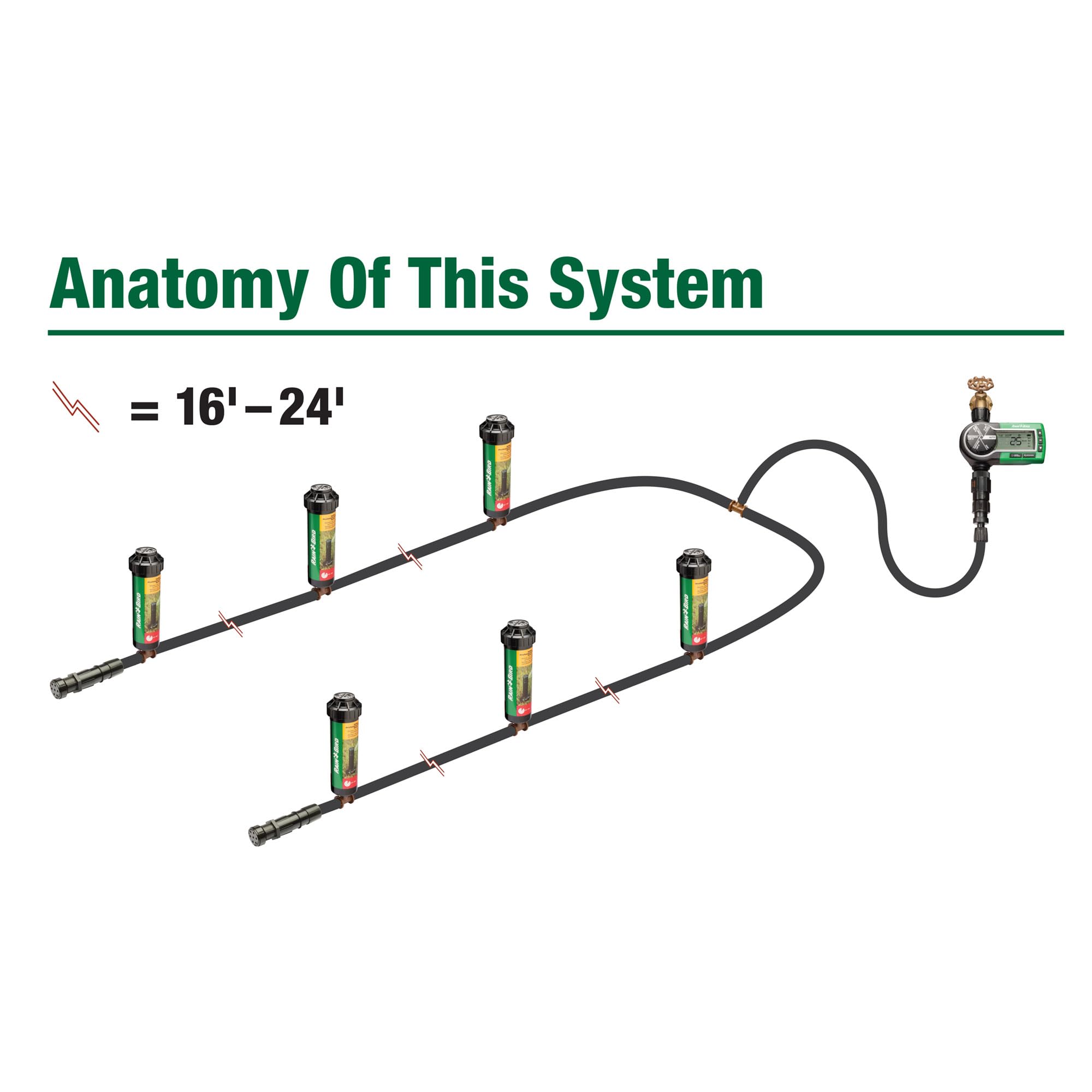

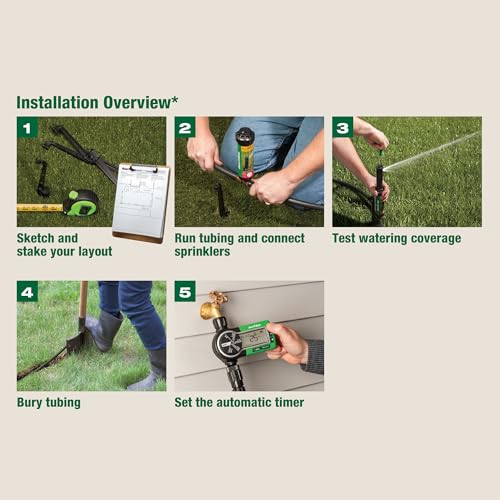

If you have a front or back lawn in the 1,000 to 3,000 sq. ft. range and want automated watering without a full in-ground PVC system, this kit is designed for that gap. You connect it directly to an outdoor faucet, trench shallow lines to each rotor position, and program the timer to run on your preferred schedule.
For yards larger than 3,000 sq. ft., the manufacturer's guidance is to use multiple independent kits rather than expanding a single system, as adding heads to one line reduces pressure at each rotor.
If your water source is a well or your supply pressure runs below 45 PSI, check your flow rate before purchasing, as low-pressure sources require careful planning around how many heads you can run per zone.
What to Expect from the Rain Bird 32ETI Automatic Sprinkler System Kit in Real Use

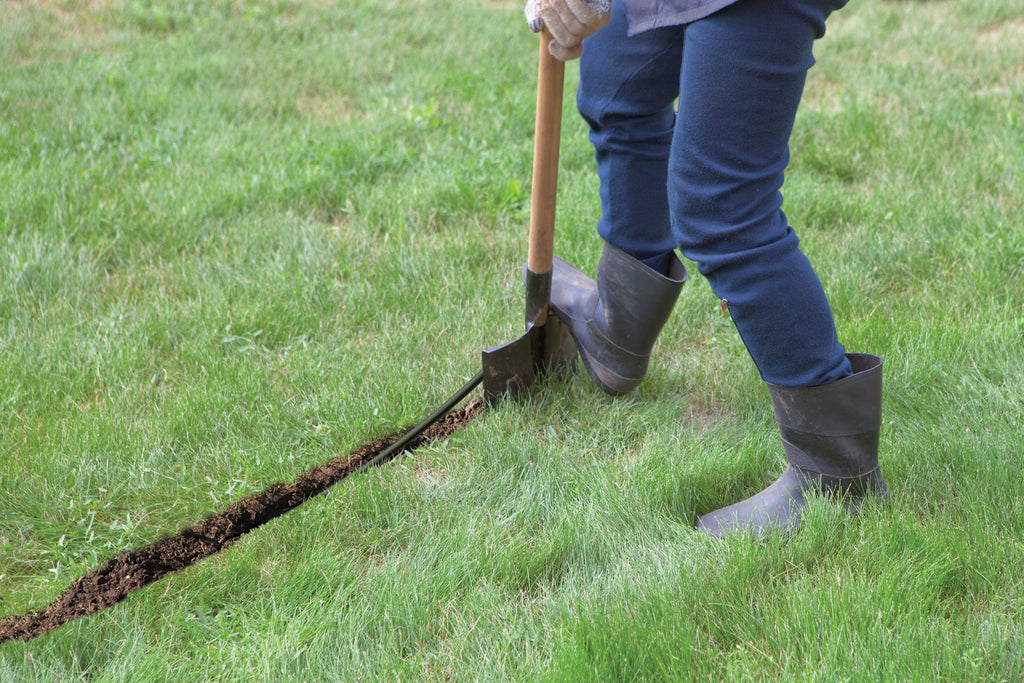

Verified buyers describe installation as manageable for a capable DIYer in a half day to a full day, with trenching being the most physically demanding part. The instruction manual is consistently noted as clear and useful during layout and setup.

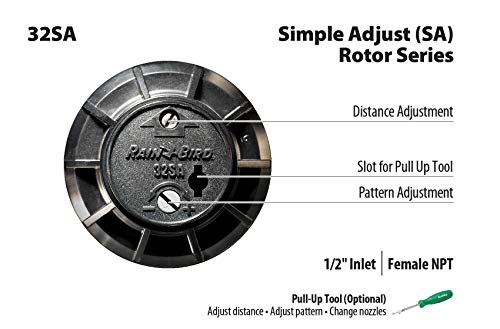

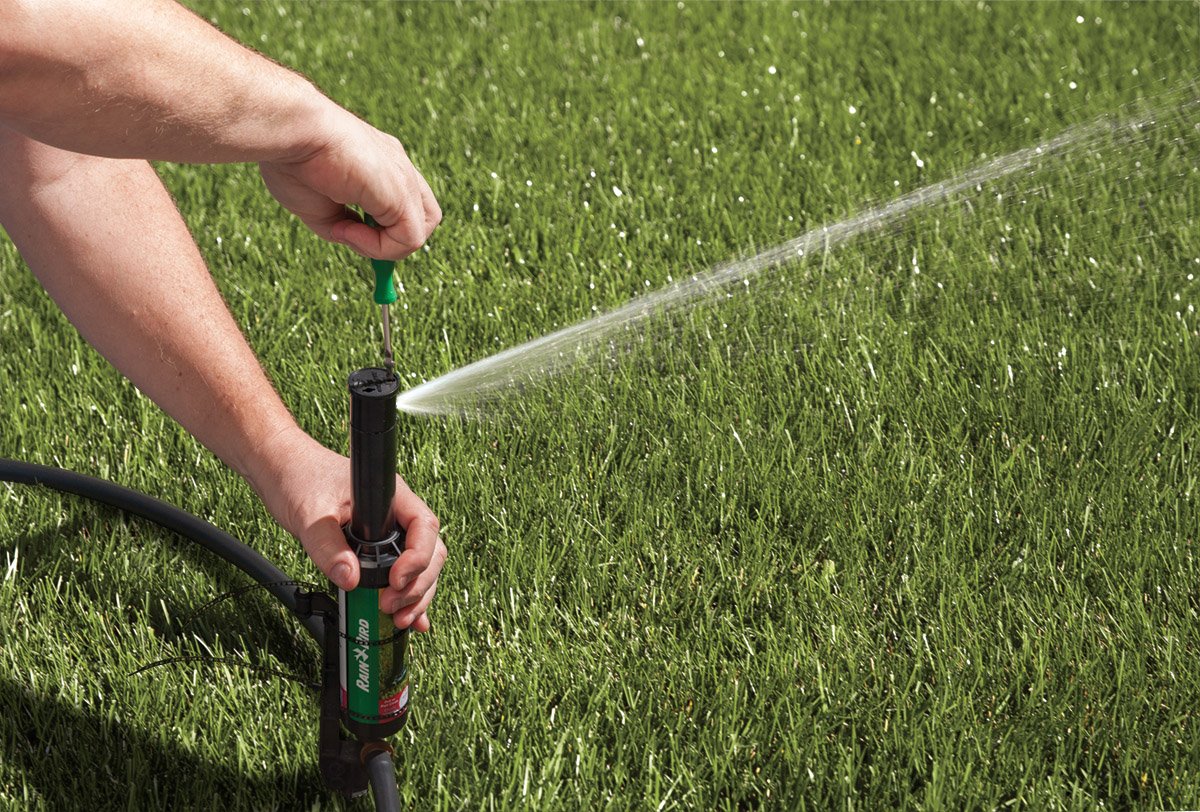

Spray distance and rotor rotation are adjustable, though there is no visual degree indicator on the heads, so dialing in coverage requires running the system and observing, then making incremental changes.
Several buyers with yards larger than the kit's stated maximum have purchased two or three units to cover the full area, running each kit as a separate zone from its own faucet or a multi-valve timer. This approach is described as more effective than stretching a single kit beyond its component limit.
Minor leaking at connection points is noted by multiple buyers as something to address during initial testing, typically resolved by tightening fittings or adding plumbing tape. Rotor heads that fail to pop up are usually traced to dirt in the mechanism or insufficient line pressure rather than a defect in the head itself.
The timer programs up to four cycles per day, though multi-watering schedules must follow even intervals, which limits flexibility for custom morning and evening timing windows.
Real-world performance notes sourced in part from verified Amazon customer purchases.
Frequently Asked Questions
How many Rain Bird 32ETI kits do you need for a larger yard?
The kit is rated for 1,000 to 3,000 sq. ft. per system. For yards larger than that, the recommended approach is to run multiple independent kits, each connected to its own water supply or valve, rather than adding tubing or extra heads to a single kit. Performance drops when you extend beyond the included components because pressure at each rotor decreases as the line lengthens or splits.
Can you use the Rain Bird 32ETI with a well or low-pressure water supply?
You can, but it requires careful planning. The system is rated for 45 to 75 PSI. If your well delivers lower pressure, you will likely need to reduce the number of rotor heads running per zone and choose smaller nozzle sizes to stay within the flow capacity your pump can sustain. Using a multi-valve timer to stagger zones gives the well pump time to recover between cycles, which helps maintain consistent pressure across each run.
Do the sprinkler heads need to be winterized before freezing temperatures?
The tubing retains water after each cycle, so in climates with hard freezes, you will need to drain or blow out the lines before the first frost to prevent damage to the tubing and fittings.
The timer and controller should be disconnected from the faucet and stored indoors for the winter. Reconnection and a basic pressure check at the start of the next season will confirm everything is still seated correctly after the freeze-thaw cycle.
