The Vevor lock channel and spring wire kit is a film retention system for greenhouse builders, high tunnel operators, and covered structure projects who need a reliable, reusable method to secure poly film, shade cloth, or heavy tarps to wood or steel frames.
The aluminum alloy channel resists rust, bends to curved frame profiles without deforming, and accepts two layers of film with two separate spring wires in a single channel. Included screws are short, so builders in high-wind environments may want to supplement with longer fasteners for added holding strength.

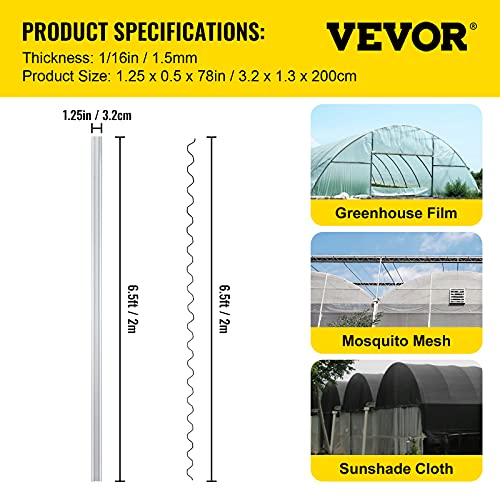

Specifications
-

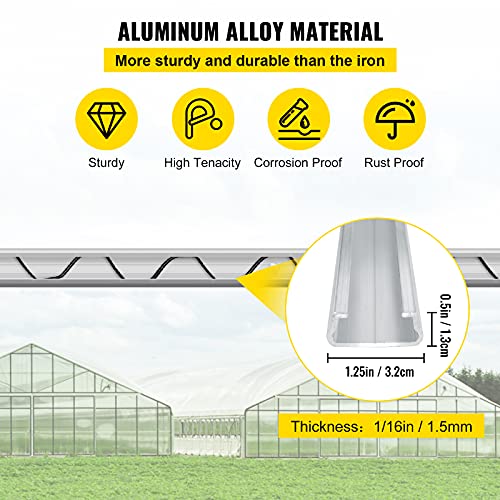

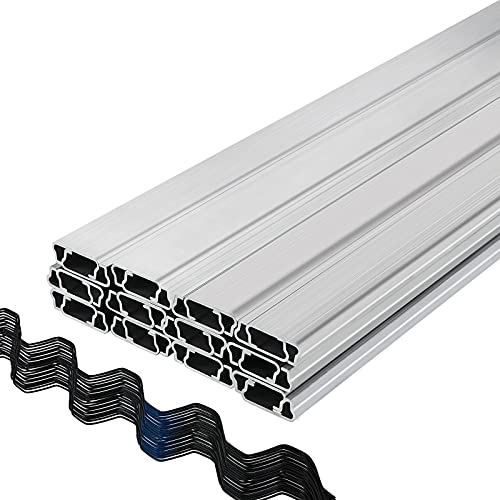

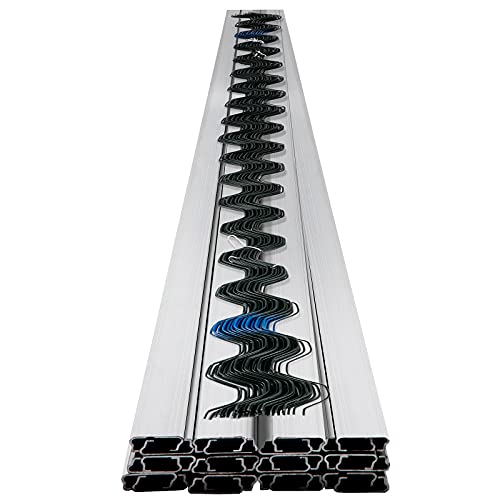

Channel Material: Aluminum alloy, rust-resistant
-

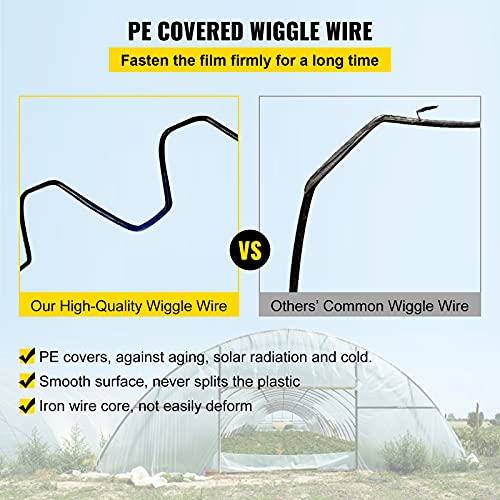

Wire Core: Iron with PE (polyethylene) coating
-
PE Coating Properties: Cold-resistant, radiation-resistant, insulating
-
Channel Length: 6.5 feet (2 meters)
-
Channel Width: 1.25 inches (3.2 cm)
-
Channel Height: 0.5 inches (1.3 cm)
-
Channel Wall Thickness: 1/16 inch (1.5 mm)
-
Wire Capacity: Accepts 2 wiggle wires for dual-layer film applications
-
Screws Included: Yes (quantity varies by pack size; 30-pack includes 120 screws)
-
Pack Sizes: 20-pack, 30-pack, and 50-pack
-
Compatible Materials: Poly film, shade cloth, heavy tarps

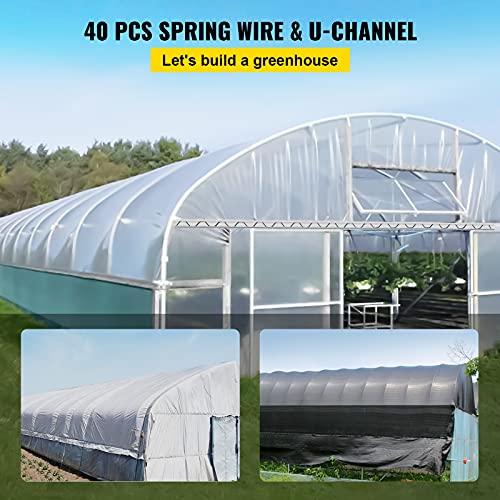

Whether This Kit Fits Your Greenhouse, High Tunnel, Carport Cover, or Shed Build
At 6.5 feet per channel and available in packs up to 50 units, this kit suits everything from small hobby greenhouses to larger high tunnel repairs and creative covered structure projects like solar kilns or storage shed enclosures.

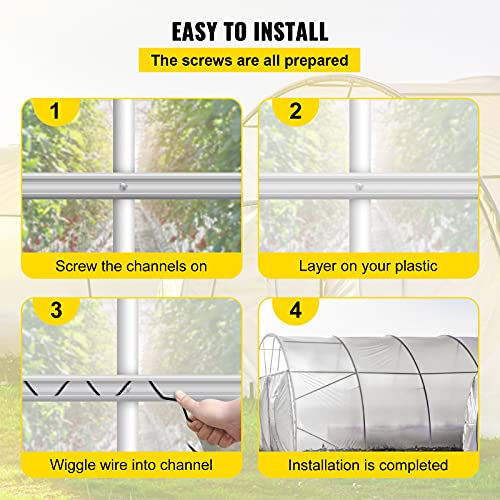

The 1.25-inch channel profile accepts two wiggle wires simultaneously, which makes double-layer poly film installations practical without sourcing a specialized dual-wire channel. For steel tube frames where direct screw attachment is not possible, mounting wood strapping to the steel frame and screwing the channel to the wood is the documented field approach.
The channel cuts cleanly with a metal-cutting blade in a jigsaw or reciprocating saw, and the cut ends should be filed smooth before installation to protect film from sharp edges. For high-wind environments, using longer screws than the included hardware provides additional holding strength at each mounting point.
What to Expect from the Vevor Lock Channel and Spring Wire Kit in Real Use
Verified buyers have used this kit across a range of applications including high tunnel greenhouse repairs, carport-to-solar-kiln conversions, garage-in-a-box re-covering, and small greenhouse builds. In all of these applications, the channel and wire held film, shade cloth, and heavy tarps securely under load.
One buyer confirmed the channel accepts two layers of 6 mil greenhouse film with two spring wires inserted simultaneously without deformation or fit issues. Another buyer reports the system held through a close tornado pass with only minor displacement that was easily reset. The channel bends to frame curves without losing its profile, and cuts cleanly with a metal-cutting jigsaw blade.
Two field notes worth knowing: some channel ends arrive with sharp edges that need filing before use to avoid film damage, and the PE coating on the spring wire can flake with repeated insertion and removal cycles over time. The included self-tapping screws are noted as short for high-wind applications, with longer screws recommended for exposed or wind-prone structures.
Real-world performance notes sourced in part from verified Amazon customer purchases.
Frequently Asked Questions
Can this channel hold two layers of poly film with two separate spring wires?
Yes. The 1.25-inch channel profile is wide enough to accept two wiggle wires simultaneously, which allows you to lock two independent layers of film in the same channel position.
This is the configuration needed for inflated double-layer greenhouse insulation, where each film layer must be independently secured to maintain the air gap between them. Verified field use confirms two layers of 6 mil greenhouse film with two spring wires fit and hold without deforming the channel.
What screws should you use, and are the included screws adequate for high-wind conditions?
The kit includes self-tapping screws, and buyers report these work well for standard installations on wood frame members. For high-wind environments or exposed structures, the included screws are noted as short, and substituting longer screws such as Strong-Tie structural screws provides significantly more holding strength at each mounting point.
For steel tube frames, self-tapping screws are the correct fastener type, but choosing a longer version than the included hardware is advisable if your structure faces regular wind loading.
Can the channel be used on non-greenhouse structures like carports, sheds, or temporary enclosures?
Yes. The channel and spring wire system works on any structure where flexible covering material needs to be secured to a frame, regardless of whether the structure is a dedicated greenhouse. Verified field applications include carport-to-solar-kiln conversions for firewood drying and re-covering a damaged garage-in-a-box type structure with heavy tarps.
The key requirement is that the frame has a mounting surface, either wood or steel, that can accept screws to hold the channel in place. For steel tube frames without a wood nailer, attaching wood strapping to the steel before mounting the channel is the standard approach.
